Stevpris MK6 Anchor

Material: Carbon Steel
Weight: 250kg~45000kg
Finish: Blacking Bitumen Painting
Class Certificate: ABS, LR, BV, DNV, GL, NK, KR, IRS, and CCS
Application: for ship anchorage

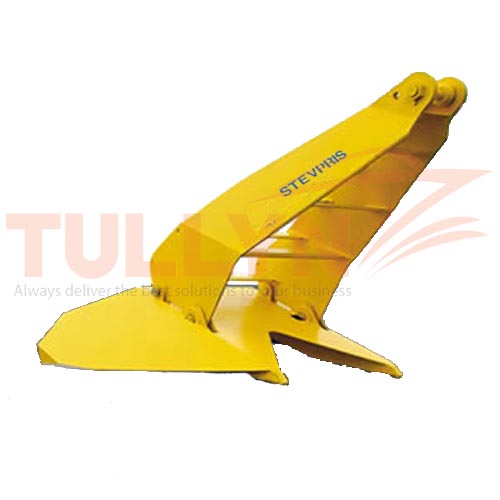

Stevpris MK6 Anchor

Stevpris MK6 Anchor Introduction

Stevpris Mk6 Anchor is widely used in mooring projects. It has the most advanced design to reach the Ultimate Holding Capacity. The Deep Penetration with plough shaped shank, streamlining design means less resistance to penetration and retrieval.

The Hollow anchor fluke can be ballasted and Rigid construction allows high point loads on fluke points. There are Adjustable Fluke/Shank angle in 3 positions

The Weight could be upon to 45000kg.

This Stevpris MK6 anchor is easy to hand and can be rapid penetrated in different soil conditions. It is structured from high tensile steel and approved by all classifications.

Stevpris MK6 Anchor Drawing

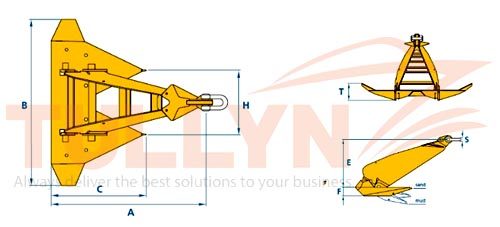

Stevpris mk5 anchor drawing

Stevpris mk6 anchor drawing

Stevpris MK6 Anchor Specification

Anchor Weight A B C E F H T S
KG mm mm mm mm mm mm mm mm
1500 2862 3085 1755 1458 263 1192 478 80
3000 3605 3886 2212 1837 332 1502 603 90
5000 4275 4608 2622 2178 393 1780 715 110
8000 4999 5389 3067 2547 460 2082 836 130
10000 5385 5805 3304 2743 495 2243 900 140
12000 5723 6169 3511 2915 526 2383 957 150
15000 6165 6645 3782 3140 567 2567 1031 160
18000 6551 7062 4019 3337 602 2728 1095 170
20000 6785 7314 4163 3457 624 2826 1135 180
22000 7004 7550 4297 3568 644 2717 1171 190
25000 7309 7879 4484 3723 672 3044 1222 200
30000 7767 8373 4765 3757 714 3235 1299 210
65000 10051 10834 6166 5120 924 4186 1681 300

Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. For the actual specification, please check with us when order placed.Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
