2YSLCYK-J EMC VFD Electric Cable 0.6/1KV

APPLICATION OVERVIEW

2YSLCYK-J is suitable for inverter drive motor power supply for the frequency converters, used in automotive and food industry, packaging industry, machine tools and handling equipment.

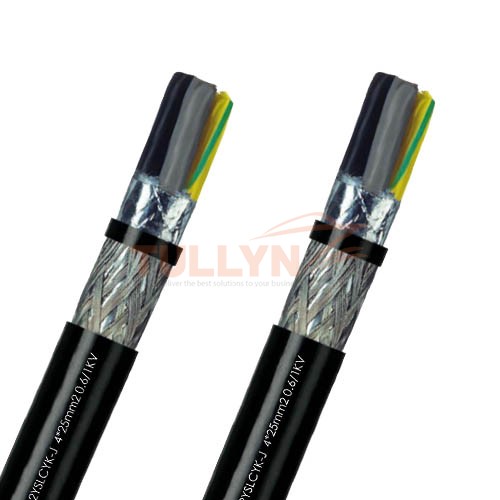

2YSLCYK-J EMC VFD PVC Cable 0.6/1KV

2YSLCYK-J EMC PVC VFD Cable 0.6/1KV Application

2YSLCYK-J VFD Cable is used as motor power supply cable for frequency converters ensures electromagnetic compatibility in industrial buildings, facilities with operating equipment where electromagnetic interference might negatively influence surroundings.

The 2YSLCYK-J cable is also suitable as supply and connecting cable for medium mechanical stress in fixed installation and forced movements in dry, moist and wet environments but not suitable for open-air use.

The 2YSLCYK-J cable is used in automotive industry, food industry, packaging, tool-making machinery, handling technics, as a connecting cable to industrial pumps, ventilators, conveyor belts and air-conditioning installation. The optimal screening of those cables ensures an interference-free operation of frequency converters.

These 2YSLCYK-J cables are double shielded, large gauge size, PVC motor supply cables. Polyethylene insulation over very fine stranded copper provides a low-loss transfer of power, excellent low capacitance performance, and superior flexibility when compared to conventional PVC cables.

2YSLCYK-J cable applications include frequency converters, motor runs, connections with high electromagnetic interference. Found in the automotive, paper and food industry, environmental technology, packaging industry, machine tools and handling equipment. The overall foil and braid shield offers excellent protection against electromagnetic and electrical interferences.

This version substitutes the common single green/yellow ground wire for three symmetrical green/yellow ground wires for improved EMC characteristics. For medium mechanical stresses found indoors in dry, moist and wet areas. For 2YSLCYK-J B+3, the black UV-resistant jacket allows for outdoor use and for direct burial applications.

2YSLCYK-J EMC 0.6/1KV VFD PVC Cable Construction

Conductor: Flexible copper conductor Cl. 5,acc to IEC 60228, DIN VDE 0295
Insulation: PE compound
Cores color: black, brown, grey, green-yellow, cores stranded in
concentric layers
Stranding: in layers
Screen: 1 Aluminium tape + PETP foil
2 tinned copper braid
Outer sheath: 2YSLCYK-J: RAL 9005 BLACK   2YSLCY: Transparent

2YSLCYK-J EMC PVC VFD Cable 0.6/1KV Technical Data

Special motor power supply cable for frequency converters adapted to DIN VDE 0250

Nominal Voltage U0/U 600/1000 V
Max. Operating Voltage A.C. and 3-phase 700/1200 V
DC operation 900/1800 V
Temperature Range Flexing: +5°C to +70°C (+41°F to +158°F)
Fixed: -40°C to +70°C (-40°F to +158°F)
Test Voltage 4000 V
Insulation Resistance Min. 200 MOhm x km

2YSLCYK-J EMC VFD PVC Cable 0.6/1KV Specification

Dimension (mm2) Outher diameter (mm) Copper weight (kg/km) Weight appr.
(kg/km)
4 x 1,5 10,4 95 230
4 x 2,5 12,1 150 300
4 x 4 14,5 235 485
4 x 6 16,4 320 630
4 x 10 19,3 533 533
4 x 16 21,9 798 1290
4 x 25 26,6 1236 1860
4 x 35 29,9 1663 2610
4 x 50 35,0 2397 2950
4 x 70 39,4 3196 3950
4 x 95 46,0 4316 5300
4 x 120 51,9 5435 6600
4 x 150 57,5 6394 7040
4 x 185 61,1 7639 8380
4 x 240 69,0 10013 12150
3 x 1,5 + 3 G 0,25 10,2 86 140
3 x 2,5 + 3 G 0,5 11,4 144 220
3 x 4 + 3 G 0,75 13,0 224 323
3 x 6 + 3 G 1 15,0 298 420
3 x 10 + 3 G 1,5 18,4 491 615
3 x 16 + 3 x 2,5 21,6 723 800
3 x 25 + 3 x 4 25,3 1138 1150
3 x 35 + 3 x 6 27,8 1535 1550
3 x 50 + 3 x 10 32,6 2208 2250
3 x 70 + 3 x 10 38,5 2871 2890
3 x 95 + 3 x 16 44,0 3953 3820
3 x 120 + 3 x 16 48,0 4836 4630
3 x 150 + 3 x 25 53,0 5412 5880
3 x 185 + 3 x 35 57,5 6969 7190
3 x 240 + 3 x 50 66,0 8540 9540

Other dimensions and colours available on request
Halogen Free On request, it is possible to obtain 2XSLCH-J Halogen-free Version:
Insulation: XLPE special compound. according to IEC 60502-4 (max. core temperature + 90°C).
Outer sheath: special type SHF1 (HM2) according to IEC 60092-353
