CWZ series marine horizontal self-priming centrifugal pump
CWZ series marine horizontal self-priming centrifugal pump Application
CWZ series Marine horizontal self-priming centrifugal pump, applicable to ships cooling pumps, sanitary pump, fire pump, ballast pump bilge, etc. CWZ series marine horizontal centrifugal self-priming pump is well used in all kinds of ships and warships for ballast, fire control, life water supply on the bilge. It can be used to pump seawater and fresh water, but the temperature should be lower than 80℃.
CWZ series marine horizontal self-priming centrifugal pump Drawing

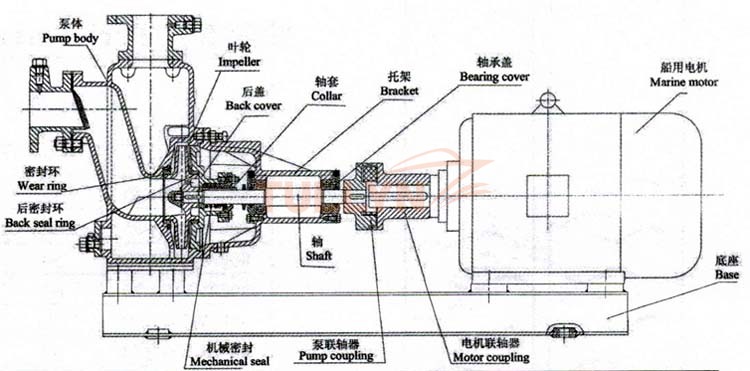

CWZ series marine horizontal self-priming centrifugal pump drawing
CWZ series marine horizontal self-priming centrifugal pump Technical Data
| Model | traffic m3/h |
lift m |
Need NPSH m |
Motor speed r/min |
The motor power kW |
|---|---|---|---|---|---|
| 32CWZ-3 | 8 | 42 | 4 | 2950 | 4 |
| 32CWZ-4 | 8 | 30 | 4 | 2950 | 2.2 |
| 32CWZ-5 | 8 | 21 | 4 | 2950 | 1.5 |
| 40CWZ-4 | 12 | 42 | 4 | 2950 | 4 |
| 40CWZ-5 | 12 | 30 | 4 | 2950 | 3 |
| 40CWZ-6 | 12 | 21 | 4 | 2950 | 2.2 |
| 50CWZ-5 | 21 | 42 | 4 | 2950 | 5.5 |
| 50CWZ-6 | 21 | 30 | 4 | 2950 | 4 |
| 50CWZ-8 | 21 | 21 | 4 | 2950 | 3 |
| 50CWZ-11 | 21 | 15 | 4 | 2950 | 2.2 |
| 65CWZ-5 | 30 | 60 | 5 | 2950 | 15 |
| 65CWZ-6 | 36 | 42 | 5 | 2950 | 11 |
| 65CWZ-8 | 36 | 30 | 4 | 2950 | 5.5 |
| 65CWZ-11 | 36 | 21 | 4 | 2950 | 4 |
| 80CWZ-5.5 | 60 | 75 | 5 | 2950 | 30 |
| 80CWZ-6 | 60 | 50 | 5 | 2950 | 22 |
| 80CWZ-11 | 60 | 30 | 4 | 2950 | 11 |
| 80CWZ-14 | 60 | 21 | 4 | 2950 | 7.5 |
| 100CWZ-6 | 100 | 85 | 5 | 2950 | 55 |
| 100CWZ-8 | 100 | 60 | 5 | 2950 | 37 |
| 100CWZ-11 | 100 | 40 | 5 | 2950 | 22 |
| 100CWZ-14 | 100 | 30 | 5 | 2950 | 15 |
| 100CWZ-18 | 100 | 21 | 5 | 2950 | 11 |
| 150CWZ-16 | 180 | 30 | 4.5 | 2950 | 37 |
| 150CWZ-22 | 200 | 25 | 4.5 | 2950 | 37 |
| 200CWZ-15 | 300 | 25 | 6.5 | 1450 | 37 |
| 250CWZ-20 | 550 | 22 | 5 | 1450 | 75 |
| 32CWZ-5(Z) | 8 | 21 | 4 | 2950 | 1.5 |
| 40CWZ-4A(Z) | 12.5 | 32 | 4 | 2950 | 3 |
| 40CWZ-5(Z) | 12 | 30 | 4 | 2950 | 3 |
| 40CWZ-6(Z) | 12 | 20 | 4 | 2950 | 2.2 |
| 50CWZ-4(Z) | 13.5 | 22.5 | 5 | 2900 | 2.2 |
| 50CWZ-5(Z) | 21 | 42 | 5 | 2950 | 5.5 |
| 50CWZ-6(Z) | 25.5 | 18 | 4 | 2900 | 3 |
| 65CWZ-6(Z) | 36 | 42 | 5 | 2950 | 11 |
| 65CWZ-8(Z) | 36 | 30 | 4 | 2950 | 5.5 |
| 65CWZ-11(Z) | 36 | 21 | 4 | 2950 | 4 |
| 80CWZ-6(Z) | 60 | 60 | 5 | 2950 | 22 |
| 80CWZ-6(Z)A | 52 | 56 | 5 | 2950 | 18.5 |
| 80CWZ-8(Z) | 60 | 42 | 5 | 2950 | 15 |
| 80CWZ-11(Z) | 50 | 30 | 4 | 2950 | 11 |
| 80CWZ-14(Z) | 60 | 21 | 4 | 2950 | 7.5 |
Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. For the actual specification, please check with us when order placed.
