CYZ-A type self-priming centrifugal FreshWater Pump

APPLICATION: CYZ-A Type Self-suction Centrifugal FreshWater Pump is capable to deliver seawater, fresh water, drainage water, is also suitable for the oil industry to transport gasoline, respectively,  kerosene, diesel, jet fuel and other petroleum products and water, sea water, medium temperature -20 ℃ to 80 ℃.

CYZ-A type self-priming Centrifugal FreshWater Pump

CYZ-A type self-priming Centrifugal FreshWater Pump Application

CYZ-A Type Self-suction Centrifugal FreshWater Pump is capable to deliver gasoline, kerosene, diesel, seawater,
fresh water, drainage water. The CYZ-A Type Self-priming centrifugal freshwater pump is the new pump developed based on the international technical information. The pump has the ability of simple structure, easy operation, smooth running, easy maintenance, high efficiency, long life, strong ability of self-absorption. No bottom valve needed to install in the pipeline, just to ensure that pump body filled with priming oil before work. It is suitable for the oil tanker or water transportation on the ship, it can also be used as stripping pumps.

CYZ-A Self-priming centrifugal pump is suitable for the oil industry, land-based oil depots, tanker as bilge pumps, fire pumps and ballast pumps and cooling water circulation pumps, to transport gasoline, respectively,  kerosene, diesel, jet fuel and other petroleum products and water, sea water, medium temperature -20 ℃ -80 ℃. If using corrosion-resistant mechanical seals and stainless steel material, can also be used in chemical, pharmaceutical, brewing, electroplating, printing and dyeing, paper making, power, and mining industry, etc.

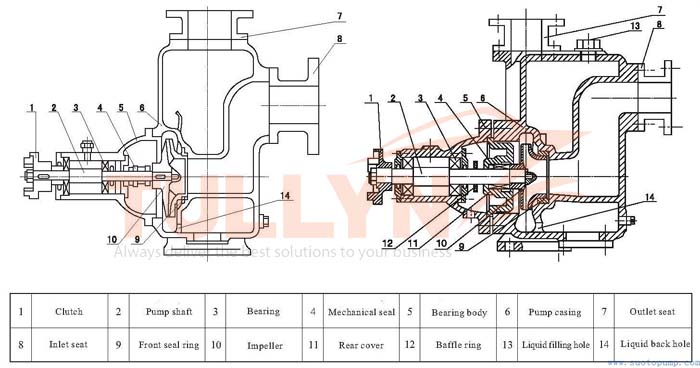

CYZ-A type self-priming centrifugal FreshWater Pump Drawing

CYZ-A type self-priming centrifugal FreshWater Pump Drawing

CYZ-A type self-priming Centrifugal Fresh Water Pump Specification

Performance Capacity Head Suction Rotary Speed Motor Power Caliber(mm)
Model (m³/h) (m) (m) (r/min) (KW) Inlet X Outlet
100CYZ-A-20 100 20 6 2900 11 100X100
100CYZ-A-40 100 40 6 2900 18.5 100X100
100CYZ-A-40A 100 10 6 1450 15 100X100
100CYZ-A-65 100 65 6 2900 30 100X100
100CYZ-A-75 70 75 6 2900 30 100X100
150CYZ-A-55 170 55 6 2900 45 150X100
150CYZ-A-65 170 65 5 2900 55 150X100
150CYZ-A-65A 170 65 5 1450 55 150X100
150CYZ-A-80 160 80 5 2900 55 150X100
200CYZ-A-32 400 32 5 1450 55 200X200
200CYZ-A-63 280 63 5 1450 90 200X200
200CYZ-A-65 350 65 5 1450 110 200X200
250CYZ-A-32 550 32 5 1450 75 250X250
250CYZ-A-50 400 50 5 1450 90 250X250
250CYZ-A-55 450 55 5 1450 110 250X250
250CYZ-A-75 400 75 5 1450 132 250X250
300CYZ-A-32 600 32 5 1450 90 300×300
300CYZ-A-50 500 50 5 1450 110 300×300
300CYZ-A-55 550 55 5 1450 132 300×300

​Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. Subject to change without prior notice. For the actual specification, please check with us when order placed.Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
