DNW Type Marine horizontal condensate pump
DNW Type Marine horizontal condensate pump Application
This DNW Type Marine horizontal condensate pump is mainly used in ship seawater desalination device, pumping condensed water, can also be used for other purposes with the pump.
DNW horizontal condensate pump is widely used in textile, metallurgy, chemical industry, papermaking, hotels and other hot water boiler pressurized circulating transport and city heating system. The DNW Series Marine horizontal condensate pump temperature is not higher than 120℃.
Its characteristics are as follows:
1. It runs smoothly: the absolute concentricity of the pump shaft and the excellent dynamic and static balance of the impeller, so as to ensure smooth operation and no vibration.
2, The pump is quiet while running: the pump equipment under the support of two low noise bearings is very smooth, except for the weak sound of the motor, and the noise can bearly hear.
3, convenient maintenance: replacement of seals, bearings, simple and convenient.
4, its failure rate is low: the product’s structure is simple and reasonable, the key part is the international first-class quality matching, the whole machine has no breakdown working time to raise greatly.
5, Space savings: Outlet can be installed to the right, left, up three different directions. This saves space for the layout of the pipeline.
6, DNW Type Marine horizontal condensate pump is leak proof: hard alloy seal with different materials to ensure the transportation of different media without leakage.

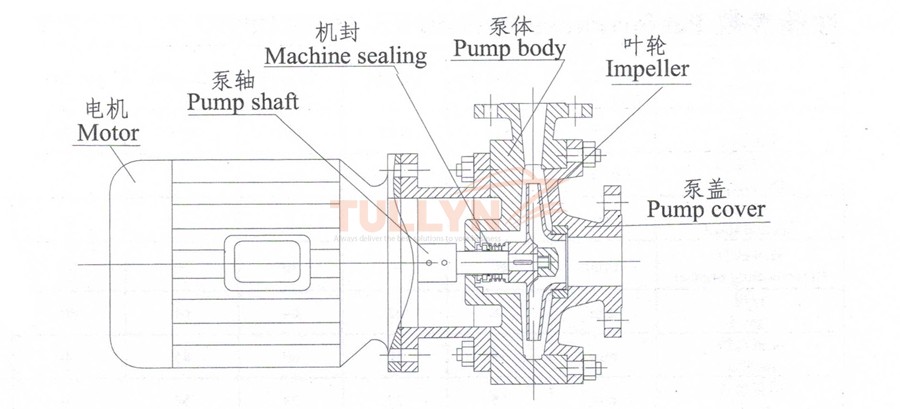

DNW Type horizontal Marine condensate pump Drawing
Marine DNW Type horizontal condensate pump Drawing
DNW Type Marine horizontal condensate pump Specification
| Model | traffic m3/h |
lift m |
Motor speed r/min |
Pump discharge pressure head MPa |
Suction pouring head height MPa | Condenser vacuum | Power kW |
| DNW0.2 | 0.2 | 26.7 | 2900 | 0.18 | 0.006 | 93% | 0.75 |
| DNW1 | 1 | 26.5 | 2900 | 0.18 | 0.008 | 93% | 1.1 |
| DNW2 | 2 | 26.5 | 2900 | 0.18 | 0.008 | 93% | 1.1 |
| DNW3 | 3 | 26.5 | 2900 | 0.18 | 0.008 | 93% | 1.5 |
| DNW4 | 4 | 26.5 | 2900 | 0.18 | 0.008 | 93% | 1.5 |
Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. For the actual specification, please check with us when order placed.
