ERNiCrMo-3 Nickel-Chromium-Moly Wire

AWS A5.14 Specification: ERNiCrMo-3
EN ISO 18274 Specification: SNi6625 (NiCr22Mo9Nb)
UNS: N06052
BS 2901 NA43
DIN 1736 SG-NiCr21Mo9Nb (2.4831)
Size: 0.8㎜ ~ 3.2㎜
Applications: AWS A5.14 ERNiCrMo-3 can be used to weld dissimilar metal combinations such as steel, stainless steel, Inconel and Incoloy alloys.

ERNiCrMo-3 Nickel-Chromium-Moly Alloy Welding Wire

ERNiCrMo-3 Nickel-Chromium-Moly Alloy Welding Wire Introduction

ERNiCrMo-3 (NA625) is used primarily for gas tungsten and gas metal arc and matching composition base metals. It is also used for Gas Metal Arc Welding (GMAW) and Gas Tungsten Arc Welding (GTAW) of Inconel 601, Inconel 625, Incoloy 825 and a range of high alloy austenitic and super austenitic stainless steels.

It can be used to weld dissimilar metal combinations such as steel, stainless steel, Inconel and Incoloy alloys. This Nickel-Chromium-Moly Alloy Wire provides excellent resistance to corrosion and oxidation, high strength and good fatigue resistance over a broad range of temperatures from cryogenic up to 1,800°F.

ERNiCrMo-3 Nickel-Chromium-Moly Alloy Welding Wire Specification

Grade American European
ERNiCrMo-3 AWS A5.14, ERNiCrMo-3*
ASME II, SFA-5.14, ERNiCrMo-3
ASME IX, F-No. 43
UNS N06625
BS 2901 (NA43)
DIN 1736 SG-NiCr21Mo9Nb
Werkstoff Nr. 2.4831
Europe NiCr22Mo9Nb

Typical Mechanical Properties

Tensile Strength (psi) 105,000
Tensile Strength (MPA) 724
Elongation (4d) % 30

ERNiCrMo-3 Nickel-Chromium-Moly Alloy Welding Wire Typical Chemical Composition

Grade ERNiCrMo-3
Ni% Min 64
C%* Max 0.1
Mn% Max 0.5
Fe%* Max 1.0
S% Max 0.015
Cu% Max 0.50
Si% Max 0.50
Al% Max 0.40
Cr% 22.0-23.0
Ti% Max 0.40
Nb% 3.6-4.5
Mo% 9.2-10.0
P% Max 0.015

ERNiCrMo-3 Nickel-Chromium-Moly Alloy Welding Wire Size and Packing

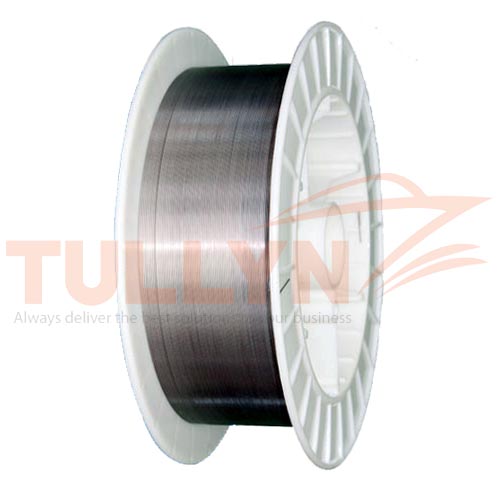

ERNiCrMo-3 is available on a spool (Precision Layer Wound) and in cut straight lengths. We have controlled cast and helix for MIG wires.

Available in Diameters Length
Straight Rods(TIG)-inch .047 .062 .093 .125 36 or 39
Straight Rods(TIG)-mm 1.2 1.6 2.4 3.2 915 or 1000
Spooled Wire (MIG)-inch .030 .035 .040 .045 Spool
Spooled Wire (MIG)-mm 0.8 0.9 1.0 1.14 Spool

Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All specifications are subject to change without prior notice. All pictures shown are for illustration purposes only. Actual product may vary.
