GF Series Horizontal Stainless Steel Mono Screw Pump

Pressure: Low Pressure
Fuel: Water and chemicals
Application: Transferring sewage, fuel, and lubricating oil
Structure: Screw Pump
Theory: Rotary Pump

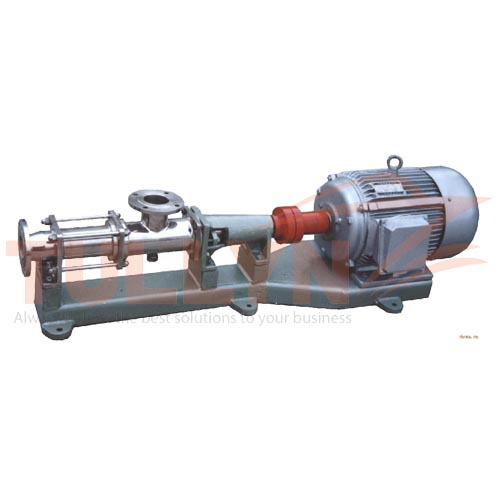

GF Series Horizontal Stainless Steel Mono Screw Pump

GF Series Horizontal Stainless Steel Mono Screw Pump Application

GF Series Horizontal Stainless Steel Mono Screw Pump is widely applied in many fields, its advantages have been adored by many of our customers. The GF type marine single screw pump has a horizontal design, clients can choose whether normal motor or marine motor. It can be applied in the ship to transfer the medium such as sewage, fuel and lubricating oil.

GF Series Horizontal Stainless Steel Mono Screw Pump Specification

Model Flow Pressure Max. speed Motor power Necessary
cavitation
(m3/h) (Mpa) (r/min) (kw) (m)
GF20-1 0.8 0.6 960 0.75 4
GF20-2 0.8 1.2 960 1.5 4
GF25-1 2 0.6 960 1.5 4
GF25-2 2 1.2 960 2.2 4
GF30-1 5 0.6 960 2.2 4
GF30-2 5 1.2 960 3 4
GF35-1 8 0.6 960 3 4
GF35-2 8 1.2 960 4 4
GF40-1 12 0.6 960 4 4
GF40-2 12 1.2 960 5.5 4
GF50-1 14 0.6 720 5.5 4.5
GF50-2 14 1.2 720 7.5 4.5
GF60-1 22 0.6 720 11 5
GF60-2 22 1.2 720 15 5
GF70-1 38 0.6 720 11 5
GF70-2 38 1.2 720 18.5 5
GF85-1 56 0.6 630 15 5
GF85-2 56 1.2 630 30 5
GF105-1 100 0.6 500 30 5
GF105-2 100 1.2 500 55 5
GF135-1 150 0.6 400 45 5

Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All specifications are subject to change without prior notice. All pictures shown are for illustration purposes only. Actual product may vary. Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
