Products

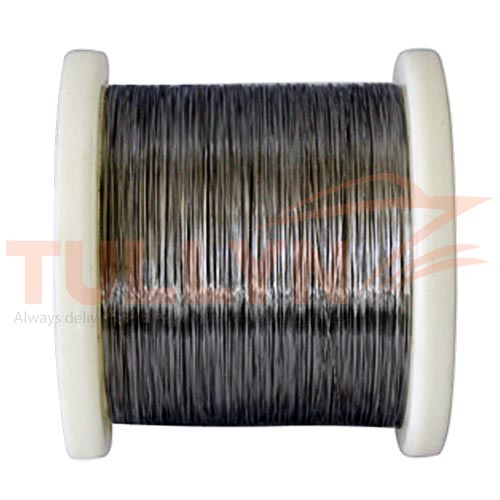

Inconel 600 NiCrFe Alloy Wire

Standards: ASTM B166, AMS 5665
Applications: High-temperature applications such as heat-treating, aerospace, electronics components, and nuclear reactors.

Inconel 600 Nickel-Chromium-Iron Alloy Welding Wire

Inconel 600 Nickel-Chromium-Iron Alloy Welding Wire Introduction

Inconel 600 (Nickel-Chromium-Iron Alloy) wire is a highly corrosion and heat resistant alloy with excellent mechanical properties ideal for use in high-temperature applications such as heat-treating, aerospace, electronics components, and nuclear reactors.

The alloy also has excellent mechanical properties and presents the desirable combination of high strength and good workability. The high nickel content gives the alloy resistance to corrosion by many organic and inorganic compounds and also makes it virtually immune to chloride stress-corrosion cracking. The alloy is not precipitation hardenable. it is hardened and strengthened only by cold working per ASTM B 166.

Inconel 600 Nickel-Chromium-Iron Alloy Welding Wire Specification

UNS: N06600
Specifications: ASTM B166, AMS 5665
International Specifications: BS 3072-3076 (NA14) DIN 17742, DIN 17750, DIN 17754 WERKSTOFF Nr 2.4816 TÜV 305 AFNOR-NC 15 Fe

Inconel 600 Nickel-Chromium-Iron Alloy Welding Wire Typical Chemical Composition

Element Min % Max %
Ni 72.00
Cr 14.00 17.00
Fe 6.00 10.00
Mn 1.00
C 0.10
Cu 0.50
Si 0.50
S 0.015
P 0.04
Co 1.00
Nb/Cb 1.00
Ti 0.50
Ta 0.05
AI 0.35

Inconel 600 Nickel-Chromium-Iron Alloy Welding Wire Typical Properties

Inconel 600 is also known as Nicrofer 716, Pyromet Alloy 600, and Nicrimphy 600.

Mechanical Properties

Condition Approx. tensile strength Approx. operating temperature
N/mm² ksi °C
Annealed 600 – 850 87 – 123 -200 to +1000
Spring Temper 900 – 1450 131 – 210 -200 to +1000

Physical Properties

Density 8.47g/cm³ 0.306 lb/in³
Melting Point 1413°C 2575°F
Coefficient of Expansion 13.3 μm/m °C (20 – 100°C) 7.4 x 10-6 in/in °F (70 – 212°F)
Modulus of Rigidity 75.6 kN/mm² 10965 ksi
Modulus of Elasticity 206 kN/mm² 29878 ksi

Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All specifications are subject to change without prior notice. All pictures shown are for illustration purposes only. Actual product may vary.

INCONEL® is a registered trademark of the Special Metals Corporation group of companies.
