Gas Tank Container
Gas Tank Container Introduction

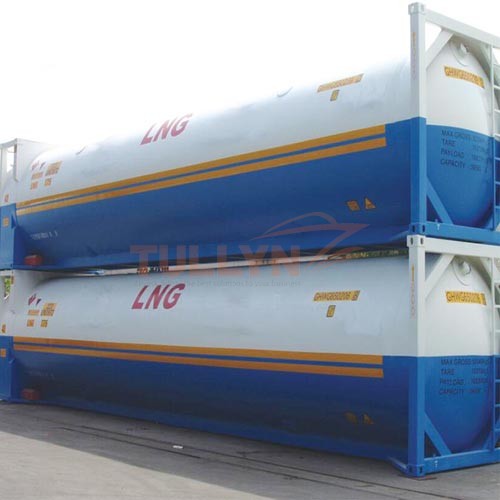

The LNG tank container is designed to provide a flexible and modal friendly means to transport liquefied gases,cost-effectively effectively. We offer tanks in a variety of capacity and pressure ratings with or without baffles and or linings. Our tanks comply with IMDG, US-DOT CFR49 – under the exemption, ADR/RID, UIC, TIR, CSC, TC.
Our LNG tank container includes zinc lined tanks designed for the transportation of non-refrigerant gases and stainless steel tank containers for pharmaceutical grade propellants.
Gas Tank Container Specification:
| Tank Type | 20’ ISO full-frame collar tank, Type UN Portable Tank T50 With Sunshield, top side rails fitted |
|
| Frame Dimensions | 20’ x 8’ x 8’6” | |
| Capacity | 24,000 Litres +/- 2% | |
| M.G.W. | 24,000 kg | |
| Tare (est.) | 7,800 kgs +/- 2% | |
| Max Payload | 16,200 kgs | |
| MAWP | 18 Bar | |
| Test Pressure | 23.5 Bar | |
| Design Temp | -40°C to +55°C | |
| Vessel Material | ASME SA612 | |
| Shell Thickness | 16mm Nominal | |
| Ends Thickness(B.F) | 18mm Nominal | |
| Corrosion Allowance | 0 mm | |
| Max. Allowable Vacuum | 1.0 Bar | |
| Frame Material | GB/T 1591-Q345D | |
| Frame to Shell | Q345R | |
| Corner castings | ISO 1161 – 8 off | |
| Vessel Design Code | ASME VⅢDiv,1 | |
| Cargo carried | LPG | |
| Radiography | RT(X-ray): 100% all longitudinal and circumferential butt welds | |
| Inspection Agency | Lloyd’s Register | |
| Design Approvals | IMDG T50, ADR/RID, CSC, TC, TIR, ISO | |
Please note that the above specifications are “general specifications” that pertain to the majority of our products. These specifications should only be used for general, informational purposes. The measurement/size of the goods delivered may be different from the data in the above table, please check with us when order placed.
