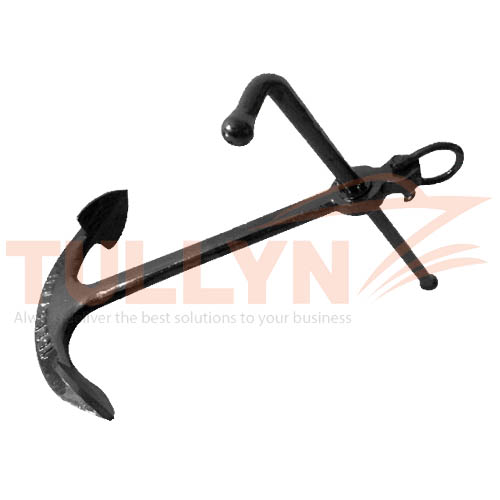

Japan Stock Anchor

Material: Casting Steel
Weight: 500kg~8,000kg
Finish: Hot galvanized, Black bitumen paint, anti-rusting paint or customized
Class Certificate: ABS, LR, BV, DNV, GL, NK, KR, IRS, and CCS
Application: common anchor for marine application

Japan Stock Anchor

Japan Stock Anchor Introduction

The Japan Stock Anchor is a well-known common traditional anchor. Marine stock anchor’s flukes and anchor shank are usually cast as a whole and have a crossbar which is perpendicular to the fluke plane. This Stock anchor normally has double claws except some one-claw anchors. When using the stock anchor, one fluke embeds into the deep soil with great holding power. Due to the crossbar, the stock anchor is not convenient for collection. Therefore, it is mainly used for small ships.

The Japan Stock anchors have a weight range of between 500kg to 8,000kg.

The Stock Anchor can be supplied with certification from any of the major classification societies

Japan Stock Anchor Drawing

Japan Stock Anchor Drawing

Japan Stock Anchor Drawing

Japan Stock Anchor Specification

kg mm mm mm
500 2000 2065 1350
700 2260 2335 1510
750 2310 2342 1560
1000 2550 2637 1700
1500 2890 2960 1950
2000 3160 3272 2140
3000 3630 3555 2650
3500 3810 3820 2570
4000 4000 4135 2920
5000 4310 4470 3140
6000 4580 4740 3330
7000 4820 4980 3530
8000 5040 5215 3620

Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. For the actual specification, please check with us when order placed. Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
