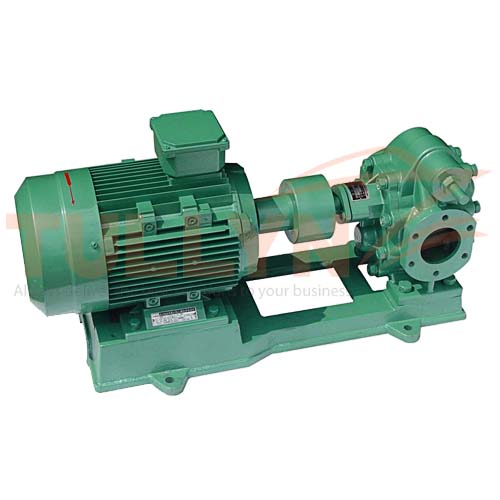

KCB Series Horizontal Lubricating Oil Gear Pump
KCB Series Horizontal Lubricating Oil Gear Pump Application
This KCB Series Horizontal Lubricating Oil Gear Pump is designed for pumping light fuel oils such as diesel, kerosene, and biodiesel. It is also possible to pump vegetable oil, motor oil, and even glycerol (the waste product in biodiesel process). However, the viscosity of the working fluid will greatly determine if the pump can handle it. The duty cycle of the pump may not be continuous if these thicker oils are the fluid medium and especially if they are below 100°F.
KCB series gear oil pump is also applicable to transport lubricating oil or other liquids properties similar to lubricants that not containing solid particles and fiber, noncorrosive, no more than 80 ℃, viscosity 5 x 10-6 ~ 1.5 x 10-3m2 / s (5-1500cSt).
KCB Series Horizontal Lubricating Oil Gear Pump Specification
| Model | Capacity | Speed | Discharge Pressure |
NPSHr | Eff. | Motor Power |
Moter Model |
|
| m3/h | L/min | r/min | Mpa | m | % | Kw | ||
| KCB-18.3 | 1.1 | 18.3 | 1400 | 1.45 | 5 | 44 | 1.5 | Y90L-4 |
| KCB-33.3 | 2 | 33.3 | 1420 | 1.45 | 5 | 44 | 2.2 | Y100L1-4 |
| KCB-55 | 3.3 | 55 | 1400 | 0.33 | 7 | 41 | 1.5 | Y90L-4 |
| KCB-83.3 | 5 | 83.3 | 1420 | 0.33 | 7 | 43 | 2.2 | Y100L1-4 |
| KCB-135 | 8 | 135 | 940 | 0.33 | 5 | 46 | 2.2 | Y112M-6 |
| KCB-200 | 12 | 200 | 1440 | 0.33 | 5 | 46 | 4 | Y112M-4 |
| KCB-300 | 18 | 300 | 960 | 0.36 | 5 | 42 | 5.5 | Y132M2-6 |
| KCB-483.3 | 29 | 483.3 | 1440 | 0.36 | 5.5 | 42 | 11 | Y160M-4 |
| KCB-633 | 38 | 633 | 970 | 0.28 | 6 | 43 | 11 | Y160L-6 |
| KCB-960 | 58 | 960 | 1470 | 0.28 | 6.5 | 43 | 18.5 | Y180M-4 |
| KCB-1200 | 72 | 1200 | 740 | 0.6 | 7 | 43 | 37 | Y280S-8 |
| KCB-1600 | 95 | 1600 | 980 | 0.6 | 7 | 43 | 45 | Y280S-6 |
| KCB-1800 | 112 | 1800 | 740 | 0.6 | 7.5 | 43 | 55 | Y315S-8 |
| KCB-2500 | 150 | 2500 | 985 | 0.6 | 7.5 | 43 | 75 | Y315S-6 |
| KCB-2850 | 170 | 2850 | 740 | 0.6 | 8 | 44 | 90 | Y315L1-8 |
| KCB-3800 | 230 | 3800 | 989 | 0.6 | 8 | 44 | 110 | Y315L1-6 |
| KCB-4100 | 245 | 4100 | 743 | 0.6 | 8 | 44 | 132 | Y355M1-8 |
| KCB-5400 | 325 | 5400 | 989 | 0.6 | 8 | 44 | 160 | Y355M1-6 |
| KCB-5600 | 330 | 5600 | 744 | 0.6 | 8 | 44 | 160 | Y355M2-8 |
| KCB-7600 | 460 | 7600 | 989 | 0.6 | 8 | 44 | 200 | Y355M3-6 |
| KCB-7000 | 420 | 7000 | 744 | 0.6 | 8 | 44 | 185 | Y355L1-8 |
| KCB-9600 | 570 | 9600 | 989 | 0.6 | 8 | 44 | 250 | Y355L2-6 |
Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. Subject to change without prior notice. For the actual specification, please check with us when order placed. Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
