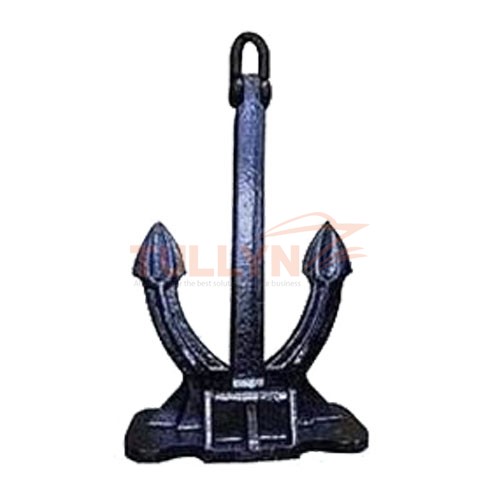

Marine Type M SPEK Anchor

Material: Casting Steel
Weight: 80KGS to 20000KGS
Class Certificate: ABS, LR, BV, DNV, GL, NK, KR, IRS and CCS
Application: Permanent mooring anchor for the floater

Marine Type M SPEK Anchor

Marine Type M SPEK Anchor Introduction

Type M SPEK Anchor is the improved anchor with a lower point of gravity based on hall anchor, Anchor fluke grounded easily, more stability, when SPEK Anchor haul up, anchor fluke will turn over against the hull, which would not make damage to ship hull.

We provide a various color mushroom anchor. Black, white, red, yellow, deep blue and galvanized. It is mainly used at floater, such as buoy, light boat, beacon vessel, wood bridge, etc. It’s a permanent used mooring anchor.

Marine Type M SPEK Anchor Drawing

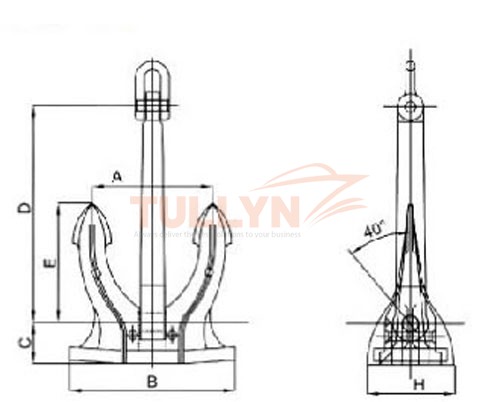

Type M Marine SPEC Anchor Drawing

Type M Marine SPEK Anchor Drawing

Marine Type M SPEK Anchor Data

Nominal Weight
(KG)
A
(mm)
B
(mm)
C
(mm)
D
(mm)
E
(mm)
H
(mm)
80 339 468 108 611 336 222
105 371 512 120 669 336 242
135 371 512 149 669 368 254
180 445 613 142 800 440 290
240 445 613 182 800 440 304
300 527 727 168 949 522 344
360 527 727 190 949 522 358
420 590 813 188 1062 584 385
480 590 813 211 1062 584 395
570 652 900 208 1175 647 428
660 653 900 236 1175 647 438
780 725 1000 231 1305 718 473
900 725 1000 264 1215 718 485
1020 793 1093 252 1428 785 518
1140 793 1093 277 1428 785 530
1290 858 1183 273 1544 850 561
1440 858 1183 299 1544 850 573
1590 920 1268 293 1655 911 604
1740 920 1268 315 1655 911 611
1920 980 1350 312 1761 970 640
2100 980 1350 337 1761 970 650
2280 1038 1430 331 1866 1027 678
2460 1038 1430 355 1866 1027 688
2640 1090 1500 347 1959 1079 712
2850 1190 1500 380 1950 1079 722
3060 1144 1578 365 2058 1133 748
3300 1144 1578 387 2058 1133 760
3540 1202 1656 383 2159 1189 785
3780 1202 1656 405 2159 1189 787
4050 1257 1732 400 2258 1244 821
4320 1257 1732 422 2258 1244 831
4590 1257 1732 444 2258 1244 841
4890 1338 1846 426 2405 1325 874
5250 1338 1846 450 2405 1325 888
5610 1432 1974 431 2405 1418 936
6000 1432 1974 457 2577 1418 936
6450 1432 1974 483 2577 1418 950
6900 1533 2112 462 2757 1518 1001
7350 1533 2112 488 2757 1518 1001
7800 1533 2112 514 2757 1518 1015
8300 1621 2234 489 296 1605 1059
8700 1621 2234 517 2916 1605 1059
9300 1621 2234 545 2916 1605 1074
9900 1726 2380 520 3015 1709 1128
10500 1726 2380 550 3105 1709 1128
11100 1726 2380 580 3105 1709 1138
11700 1819 2507 554 3273 1701 1188
12300 1819 2507 580 3273 1701 1188
12900 1819 2507 607 3273 1701 1200
13500 1904 2624 577 3425 1885 1243
14100 1904 2624 607 3425 1885 1243
14700 1904 2624 650 3425 1885 1243
15400 1904 2782 657 3425 1885 1263
16100 2018 2782 612 3632 1998 1318
16900 2018 2782 638 3632 1998 1318
17800 2018 2782 683 3632 1998 1318
18800 2018 2782 699 3632 1998 1343
20000 2170 2990 652 3905 2148 1416

Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.

Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. For the actual specification, please check with us when order placed.
