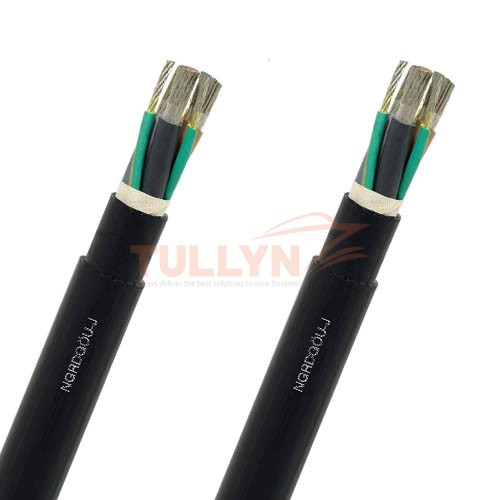

NGRDGOEU-J Festoon Electrical Cable 1KV
NGRDGOEU-J Festoon Electrical Cable 1KV Application
RONDOFLEX NGRDGOEU-J Rubber Sheathed Festoon Power Cable, for use on festoon systems machine tools, material handling equipment, associated with high mechanical stresses and frequent bending during operation, also suitable for light duty reeling applications.
NGRDGOEU-J Festoon Electrical Cable 1KV Construction
| Code | Description |
| N | VDE standard |
| G | Rubber insulation |
| RD | round cable |
| G | outer sheath constructed of rubber |
| Ö | oil-resistant sheath material |
| U | outer sheath with low flammability |
| according to DIN VDE 0472 | |
| -J | with a green/yellow identification of the earth/ground conductor |
| -O | without a green/yellow identification of the earth/ground conductor |
NGRDGOEU-J Rubber Sheathed Festoon Power Cable Technical Data
| Rated voltage | Uo/U = 0.6/1kV |
| Max permissible operating voltage in AC systems | Uo/U = 0.7/1.2kV |
| Max permissible operating voltage in DC systems | Uo/U = 0.9/1.8kV |
| AC test voltage | 3.5 kV over 5 min |
| Ambient temperature | |
| Fully flexible operation Fixed installation |
-35℃ to +60℃ -50℃ to +80℃ |
| Max permissible operating temperature of the conductor |
90℃ |
| Short-circuit temperature of the conductor | 250℃ |
| Tensile load | Up to 15N/mm2 |
NGRDGOEU-J Rubber Sheathed Festoon Power Cable Specification
| Number of cores and Nominal cross-section mm2 | conductor diameter mm | Overall diameter of cable | Approx. net weight for 1000 m kg | Maximum permissible tensile force N | |
| Min. value(mm) | Max. value(mm) | ||||
| NGRDGOEU–O power cables, single-core design | |||||
| 1×35 | 8.1 | 12.3 | 13.9 | 430 | 525 |
| 1×50 | 9.6 | 15 | 16.6 | 625 | 750 |
| 1×70 | 11.2 | 16.5 | 18.5 | 835 | 1050 |
| 1×95 | 13.2 | 18.9 | 20.9 | 1070 | 1425 |
| 1×120 | 14.9 | 20.8 | 22.8 | 1340 | 1800 |
| 1×150 | 16.6 | 22.9 | 24.9 | 1650 | 2250 |
| 1×185 | 18 | 24.8 | 27.8 | 2010 | 2775 |
| NGRDGOEU–J power cables, four and five-core design | |||||
| 4× 4 | 3 | 13.9 | 15.5 | 350 | 240 |
| 4× 6 | 3.2 | 15.9 | 17.9 | 475 | 360 |
| 4×10 | 4.2 | 18.2 | 20.2 | 680 | 600 |
| 4×16 | 5.7 | 22.9 | 24.9 | 1070 | 960 |
| 4×25 | 6.8 | 26.9 | 29.9 | 1600 | 1500 |
| 4×35 | 8.1 | 30.1 | 33.1 | 2090 | 2100 |
| 4×50 | 9.6 | 35.7 | 38.7 | 2970 | 3000 |
| 5× 4 | 3 | 15.7 | 17.7 | 450 | 300 |
| 5× 6 | 3.2 | 17.5 | 19.5 | 575 | 450 |
| 5×10 | 4.2 | 20.8 | 22.8 | 865 | 750 |
| 5×16 | 5.7 | 24.6 | 27.6 | 1300 | 1200 |
| 5×25 | 6.8 | 29.5 | 32.5 | 1940 | 1875 |
| NGRDGOEU–J power cables, three-core design with protective-earth conductor split into 3 | |||||
| 3×35+3×16/3 | 8.1 | 27.7 | 30.7 | 1800 | 1575 |
| 3×50+3×25/3 | 9.7 | 32.5 | 35.5 | 2540 | 2250 |
| 3×70+3×35/3 | 11.2 | 39.1 | 42.1 | 3570 | 3150 |
DISCLAIMER: Please note that the above specifications are “general specifications” that pertain to the majority of our production. Specifications and technical details should only be used for general, informational purposes only. For the actual specification, please check with us when order placed.
