SPF Type Lubrication Oil Horizontal Three Screw Pump

Flow: 0.4-6.7 m3/h
Pressure: 0-4.0MPa
Viscosity: 0-760cst
Temperature: ≤150C

SPF Type Lubrication Oil Horizontal Three Screw Pump

SPF Type Lubrication Oil Horizontal Three Screw Pump Application

SPF Type Lubrication Oil Horizontal Three Screw Pump is widely applied in many fields. SPF Type Horizontal Three Screw pump is suitable for the delivery of fuel oils, lubricating oils, hydraulic oils or other lubricious liquids. The medium to be transported must not contain any abrasive particles and have any corroded material.

SPF series pumps are used in fuel systems as fuel pumps for conveying, boosting and fuel oil burners, and used as a transmission and fuel pump in oil delivery systems, and it can be used as a lubricant pump in all fields of industry or used for hydraulic pumps in various hydraulic transmissions.

This SPF pump structure and operation stability ensure low noise and no pulsation of the pump. This pump is of high efficiency, energy saving, high reliability. It has a long service life, simple and low cost to maintain.

Each pump is equipped with a safety valve as an overload protection device. The pump uses a mechanical seal that requires no maintenance. SPF pumps may be mounted in any position. For safety purposes, the arrangement with “motor downwards” is not admissible.

Various types of motors or other drives are coupled to the pump via couplings. Three-phase AC motor, its protection class is IP44, insulation class B, power and main connection size are is Y series motor. The motor’s specified frequency is 50Hz. If no other changes are available, it will work with a 60Hz power supply.

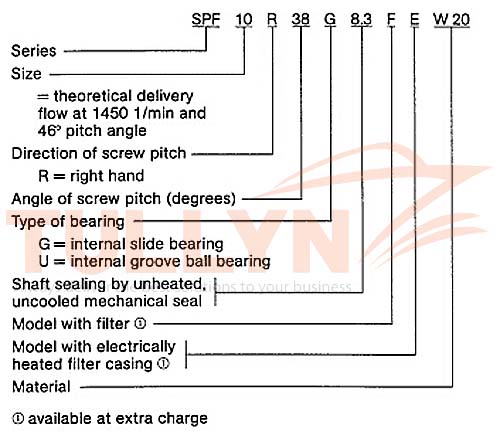

Model Explanation

SPF Type Lubrication Oil Horizontal Three Screw Pump

SPF Type Lubrication Oil Horizontal Three Screw Pump

Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All specifications are subject to change without prior notice. All pictures shown are for illustration purposes only. Actual product may vary. Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
