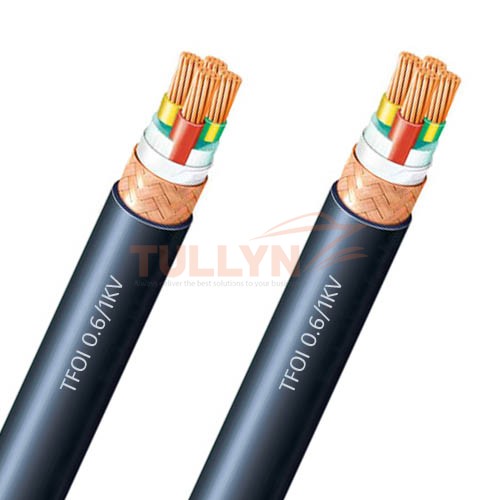

TFOI Armored Marine Electrical Cable

Material: Cu/XLPE/TCWB/SHF1
Standard: IEC 60092
Application: TFOI armored power and control marine cable suitable for ship wiring and shipboard cable where armor protection is required.

TFOI Armored Marine Electrical Cable 600/1000V

TFOI Armored Marine Electrical Cable Application

TFOI armored power and control marine cable suitable for ship wiring and shipboard cable where armor protection is required.

Design Guide: IEC 60092-350 and IEC 60092-353
Insulation material: IEC 60092-351, XLPE Sheath material: IEC 60092-359, SHF1
Flame retardant: IEC60332-1 and IEC 60332-3 Category A
Halogen content: IEC60754-1, 0.5%↓ Smoke emission: IEC 61034, 60%↑

TFOI Armored Marine Electrical Cable Construction

Conductor: Stranded plain annealed copper wires as per IEC 60228, class 2.
Insulation: XLPE as per IEC60092-351
Cabling: Insulated conductors shall be cabled. Flame retardant and non-
hygroscopic fillers may be used. Suitable tapes may be applied on the cabled core.
Inner covering: Non-hygroscopic material
Armour: Braid of annealed copper wire/ Coverage density min. 90%
Sheath: SHF1 as per IEC60092-359
Colour: Black
Core Identification: 1 Core – Black
2 Core – Black and Light Blue
3 Core – Black, Brown and Light Blue
4 Core – Black, Blue, Brown, and White
5 Core and Above – White and numbered

TFOI Armored Marine Electrical Cable Specification

One Core Specification

Nominal
area
Min. no. of
wires
Max. Conductor
dia.
Nominal
Overall diameter
Tolerance
of OD
Min. Conductor
resistance (at 20°C)
Cable
weight
mm² Ea mm mm ±mm Ω/km Kg/k
m
1.5 7 1.7 6.5 0.5 12.1 70
2.5 7 2.1 6.9 0.5 7.41 80
4 7 2.7 7.5 0.5 4.61 100
6 7 3.3 8 0.5 3.08 130
10 7 4.2 9.2 0.6 1.83 180
16 7 5.3 10.2 0.6 1.15 250
25 7 6.6 12.1 0.7 0.727 370
35 7 7.9 13.3 0.7 0.524 480
50 19 9.1 15.3 0.8 0.387 650
70 19 11 17.5 0.8 0.268 890
95 19 12.9 19.6 0.9 0.193 1170
120 37 14.5 21.4 0.9 0.153 1440
150 37 16.2 23.6 1 0.124 1750
185 37 18 26 1.1 0.0991 2160
240 61 20.6 29.1 1.2 0.1754 2780
300 61 23.1 31.9 1.3 0.0601 3420

More Specifications, please check with our sales.

Photographs are not to scale and do not represent detailed images of the respective products.
Please note that the above specifications are “general specifications” that pertain to the majority of our products. These specifications should only be used for general, informational purposes. The measurement/size of the goods delivered may be different from the data in the above table, please check with us when order placed.
