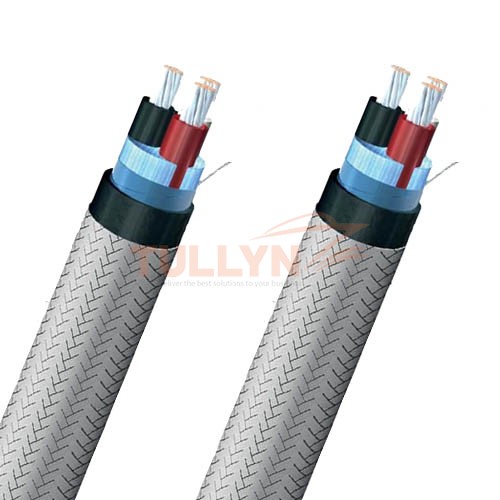

TPYCSLA Armored and Screened Lighting Cable

Standard: JIS C3410-2010
Material: Cu/EPR/Al-foil/GSWB
Certificate: ABS, LR, BV, GL, RINA, DNV, NK, KR, CCS
Application:  TPYCSLA is intended for power and lighting cable where requires the screen and armor features on shipboard and off-shore building oil and rig platform.

TPYCSLA JIS C3410 Shipboard Armored and Screened Lighting Cable

TPYCSLA JIS C3410 Shipboard Armored and Screened Lighting Cable Application

TPYCSLA is intended for power and lighting cable where requires the screen and armor features on shipboard and off-shore building oil and rig platform.

TPYCSLA JIS C3410 Shipboard Armored and Screened Lighting Cable Standards:

Design guide:
JIS C 3410(2010),
IEC 60092-350(2008-02),
IEC 60092-351(2004-04)
IEC 60092-353(2001-04),
IEC 60092-354(2003-06),
IEC 60092-359(1999-08)

JIS C3410 Shipboard Armored and Screened Lighting Cable Model&Construction

0.6/1kV DPYCSLA, TPYCSLA, FA-DPYCSLA, FA-TPYCSLA

Conductor S(D,T) Tinned annealed stranded copper, class 2 according to IEC 60228
Insulation P 85°C EPR as per JIS C 3401
Cabling Insulated conductors shall be cabled.
Flame retardant & non-hygroscopic fillers may be used
Overall Shield SLA Overall Shielded with Aluminium foil-mylar tape and drain wire
Bedding Y PVC as per JIS C 3401
Armor C
(CB)
Galvanized steel wire braid(-C TYPE) or
copper alloy wire braid(-CB TYPE)
Core identification 1C Black
2C Black, White
3C Black, White, Red
Outer sheath color Black

TPYCSLA Armored and Screened Shipboard Lighting Cable Specification

0.6/1KV TPYCSLA (FA-) TPYCSLA

Size Construction O.D Nom. Outer Diameter Tolerance Cable weight
mm2 No./mm mm mm mm Kg / Km
1.5 7/0.53 1.59 13.2 0.5 305
2.5 7/0.67 2.01 14.2 0.6 360
4 7/0.85 2.55 15.7 0.6 455
6 7/1.04 3.12 16.8 0.8 530
10 7/1.35 4.05 19 1 730
16 7/1.70 5.1 21.4 1.1 990
25 7/2.14 6.42 25.6 1.3 1400
35 7/2.52 7.56 28.2 1.4 1850
50 19/1.78 8.9 32.7 1.6 2450
70 19/2.14 10.7 38.7 1.9 3350
95 19/2.52 12.6 43.4 2.2 4390
120 37/2.03 14.2 47.1 2.4 5350
150 37/2.25 15.8 51.8 2.6 6100
185 37/2.52 17.6 57 2.9 7530

DISCLAIMER: Please note that the above specifications are “general specifications” that pertain to the majority of our production. Specifications and technical details should only be used for general, informational purposes only. For the actual specification, please check with us when order placed.
