Type Cone Rubber Fender

Material: Rubber
Standard: ISO 17357-2002
Class Certificate: ABS, LR, BV, DNV, GL, NK, KR, IRS, and CCS
Application: Used for berths where large berthing angles and heavy impacts need to be accommodated.

Type Cone Rubber Fender

Type Cone Rubber Fender Introduction

Type Cone Rubber Fender is the latest generation of cell fender, with optimal performance and efficiency. The conical body shape makes the cell fenders very stable even at large compression angles and provides excellent shear strength. With optional overload stops the Super Cone is even more resistant to over-compression.

This Type Cone Rubber fender doubles the energy absorption than the Super Cell rubber fender with the same spec.

The super-high-density polyethylene pads ate adhered to the frontal frame, which can reduce the friction factor between hull and fender to below 0.2, and can reduce the shear (horizontal force) exerted on fenders when vessel berth, which can prolong the service life of the fenders.

The frontal frame adopts a water-tight structure with high strength and better anti-rust performance.

The Cone Type Rubber Fender can be supplied with certification from any of the major classification societies.

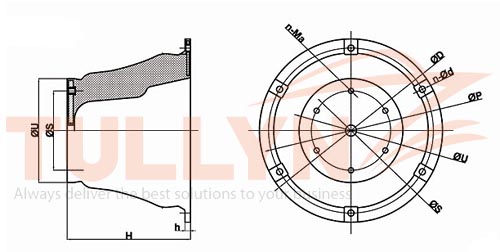

Type Cone Rubber Fender Drawing

Type Cone Rubber Fender Drawing

Type Cone Rubber Fender Drawing

Type Cone Rubber Fender Spec

 Model H(mm) D(mm) U(mm) P(mm) S(mm) Hole
CONE500H 500 800 490 730 425 4
CONE600H 600 960 590 875 515 4
CONE800H 800 1280 785 1165 685 6
CONE1000H 1000 1600 980 1460 855 6
CONE1100H 1100 1760 1080 1605 940 8
CONE1200H 1200 1920 1175 1750 1025 8
CONE1300H 1300 2080 1275 1900 1100 8
CONE1400H 1400 2240 1370 2040 1195 8
CONE1600H 1600 2560 1570 2335 1365 8
CONE1800H 1800 2880 1765 2625 1540 10

Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. Subject to change without prior notice. For the actual specification, please check with us when order placed. Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
