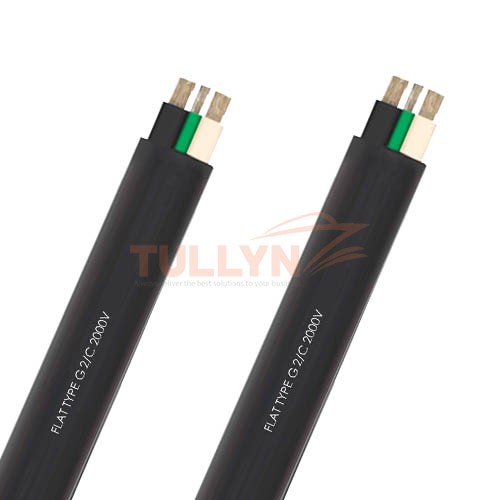

Type G Portable Power and Mining Cable 2000V
Type G Portable Power and Mining Cable 2000V Application
Type G Portable Power and Mining Cable 2000V is intended for Industrial and light-to-medium mining, Heavy duty service as power supply cable, Mobile and portable electrical equipment,3 phase AC system where grounding is required.
These flat parallel cables are designed for use on D.C. off-track mining equipment, such as D.C. shuttle cars, drills, cutting and loading machines.
This Type G portable mining cable has excellent impact and abrasion resistance, and withstand exposure to oil, acids, alkalies, heat, moisture and most chemicals, Indent printed for easy identification Rope lay stranding for maximum flex life, cable core bound for superior flexibility and toughness.
Type G Portable Power and Mining Cable 2000V Standard
ICEA S-75-381/NEMA WC 58
ASTM B 172
ASTM B 33
CAN/CSA-C22.2 No.96
Type G Portable Power and Mining Cable 2000V Construction
| Conductor: | coated annealed copper, bunched wires, rope-lay-stranded per ASTM B172 |
| Insulation: | Ethylene Propylene Rubber (EPR) |
| Jacket: | Chlorinated Polyethylene (CPE), Black |
Options:
Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.
Type G Portable Power and Mining Cable 2000V Specification
| Construction | No. of Strands | Grounding Conductor Size | Nominal Insulation Thickness | Nominal Jacket Thickness | Nominal Overall Diameter Height×Width | Nominal Weight | Ampacity |
| No. of cores× AWG/kcmil | – | AWG/kcmil | mm | mm | mm | kg/km | A |
| 2×6 | 133 | 8 | 1.5 | 2 | 14.2×25.9 | 744 | 95 |
| 2×4 | 259 | 7 | 1.5 | 2.4 | 15.5×29.2 | 945 | 127 |
| 2×3 | 259 | 6 | 1.5 | 2.4 | 17.3×32.0 | 1170 | 145 |
| 2×2 | 259 | 5 | 1.5 | 2.4 | 18.5×34.3 | 1390 | 167 |
| 2×1 | 259 | 4 | 2 | 2.8 | 20.6×39.4 | 1760 | 191 |
| 2×1/0 | 259 | 3 | 2 | 3.2 | 23.6×42.4 | 2190 | 217 |
| 2×2/0 | 329 | 2 | 2 | 3.2 | 25.1×47.0 | 2660 | 250 |
| 2×3/0 | 413 | 1 | 2 | 3.6 | 26.2×50.8 | 3190 | 286 |
| 2×4/0 | 532 | 1/0 | 2 | 3.6 | 27.9×53.3 | 3790 | 328 |
Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
Note: All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All specifications are subject to change without prior notice. All pictures shown are for illustration purposes only. Actual product may vary.
