Union Anchor JIS Stockless Anchor

Union Anchor

Type: Union anchor
Material: steel
Nominal Weight: 180kg to 46000kg
Process: Forging
Surface: black paint, galvanized or customer requested
Certificate: ABS, LR, BV, NK, DNV, RINA, CCS, GL, KR, RS, IRS
Application: inland vessels, cargo ships etc.

Category: Tags: , , , , , , ,

Union Anchor

Union Anchor Introduction

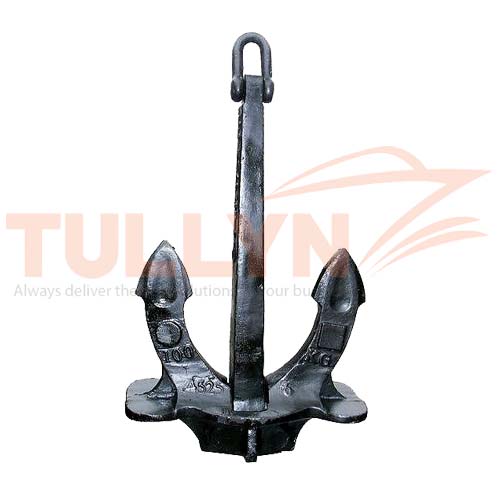

Union Anchor, so-called JIS Stockless Anchor, is made of high quality cast carbon steel. this anchor is a great mooring device for fishing boats due to the large holding power and easy storage. As an improved type of stockless anchor, the advantage is anchor claw up naturally when recycle, instant swivel when touch vessel shell, no harm to vessel body.

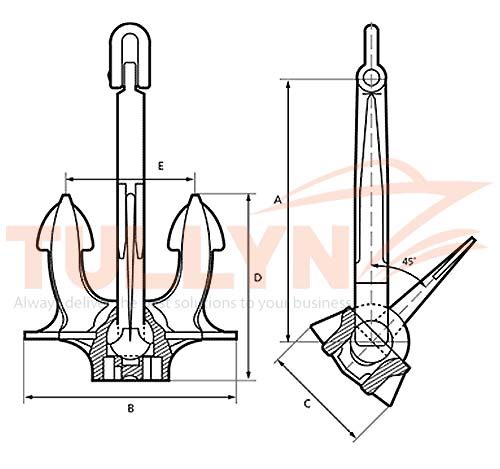

Union Anchor Drawing

Union Anchor Drawing

Union Anchor Drawing

Union Anchor Specification

Nominal
weight		 A B C D E
kg mm mm mm mm mm
180 910 650 280 591 459
240 1010 720 310 652 510
300 1080 770 331 701 540
360 1150 820 353 749 580
420 1200 860 370 786 610
480 1260 900 387 823 640
570 1330 950 408 862 670
660 1440 1000 430 910 710
780 180 1060 456 960 750
900 1550 1110 477 1009 780
1020 1620 1160 500 1057 820
1140 1680 1200 520 1094 850
1290 1750 1250 540 1132 880
1440 1820 1300 560 1181 920
1590 1880 1340 580 1218 950
1740 1930 1380 600 1255 980
1920 2000 1430 620 1303 1010
2100 2060 1470 640 1340 1040
2280 2110 1510 650 1377 1070
2460 2170 1550 670 1414 1100
2640 2230 1590 690 1450 1120
2850 2280 1630 700 1487 1150
3060 2340 1670 720 1524 1180
3300 2390 1710 740 1561 1210
3540 2450 1750 750 1588 1240
3780 2510 1790 770 1624 1260
4050 2560 1830 790 1661 1290
4320 2620 1870 800 1698 1320
4590 2670 1910 820 1735 1350
4890 2730 1950 840 1772 1380
5250 2800 2000 860 1820 1410
5610 2860 2040 880 1857 1440
6000 2930 2090 900 1895 1480
6450 3000 2140 920 1944 1510
6900 3070 2190 940 1992 1550
7350 3140 2260 960 2040 1600
7800 3190 2280 980 2068 1610
8300 3260 2330 1000 2116 1650
8700 3320 2380 1020 2153 1670
9300 3390 2420 1040 2201 1710
9900 3460 2470 1060 2240 1740
10500 3530 2540 1090 2310 1800
11100 3600 2540 1090 2310 1800
11700 3650 2630 1130 2390 1855
12300 3710 2630 1130 2390 1855
12900 3770 2670 1170 2428 1885
13500 3840 2670 1170 2428 1885
14100 3890 2780 1200 2523 1960
14700 3950 2820 1210 2559 1990
15400 4000 2860 1230 2596 2020
16100 4060 2900 1250 2633 2050
16900 4130 2950 1270 2680 2080
17800 4200 3000 1290 2720 2120
18800 4280 3060 1320 2780 2160
20000 4370 3120 1340 2830 2200
21500 4480 3200 1380 2900 2260
23000 4580 3270 1410 2700 2310
24500 4680 3340 1440 3030 2360
26000 4770 3410 1470 3100 2410
27500 4860 3470 1490 3150 2450
29000 4840 3530 1520 3210 2490
31000 5050 3610 1550 3300 2550
33000 5170 3690 1590 3350 2610
35500 5290 3780 1630 3430 2670
38500 5430 3880 1670 3520 2740
42000 5600 4000 1720 3630 2820
46000 5770 4120 1770 3740 2910

Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. For the actual specification, please check with us when order placed.Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
