YCB Series Circular Arc Gear Lubrication Oil Pump

Type: Rotary Gear Pump
Material: Cast Iron /Stainless steel
Pressure:0.6Mpa
Speed:910-1440r/min
Capacity:0.6-50m3/h
Application: all industrial fields

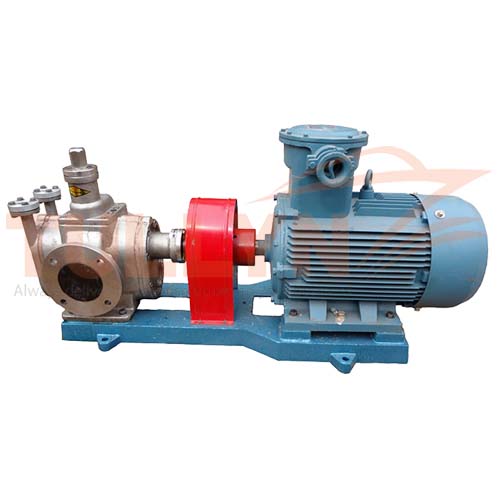

YCB Series Circular Arc Gear Lubrication Oil Pump

YCB Series Circular Arc Gear Lubrication Oil Pump Application

YCB Circular Gear Lubrication Oil Pump is capable to deal with non-corrosive lubricating or equivalent water without particles and fiber at the temperature under 290℃and with the viscosity is at from 5×10-6 to 51.5×10-3m2/s (5~1480cSt). It is used in the hydraulic system too.

When slowing down the speed, the marine pump can transfer liquid that viscosity can be as high as to 5×104cSt.
The direction of rotation is clockwise viewed from coupling end.

YCB Series Circular Arc Gear Lubrication Oil Pump Specification

Model Flow Capacity SuctionVacuum Port size Efficiency Speed Motor
m3/h L/min m mm % r/min KW Model
YCB0.6/0.6 0.6 10 3 25 32 910 0.75 Y90S-6
YCB1.0/0.6 1 16.7 3 25 32 1390 0.75 Y80L2-4
YCB1.6/0.6 1.6 26.7 3 32 42 910 0.75 Y90S-6
YCB2.5/0.6 2.5 42 3 32 42 1400 1.1 Y90S-4
YCB3.3/0.6 3.3 55 3 40 60 940 1.5 Y100L-6
YCB4/0.6 4 66 3 50 60 940 1.5 Y100L-6
YCB5/0.6 5 83.3 3 40 60 1420 2.2 Y100L1-4
YCB6/0.6 6 100 3 50 60 1420 2.2 Y100L1-4
YCB8/0.6 8 133 5 65 60 960 3 Y132S-6
YCB10/0.6 10 167 5 65 60 960 4 Y132M-6
YCB12/0.6 12 200 5 65 61 1440 5.5 Y132S-4
YCB15/0.6 15 250 5 65 61 1440 5.5 Y132S-4
YCB20/0.6 20 333 5 80 68 970 7.5 Y160M-6
YCB25/0.6 25 420 5 80 69 970 11 Y160L-6
YCB30/0.6 30 500 5 100 70 970 11 Y160L-6
YCB40/0.6 40 600 5 125 72 970 15 Y180L-6
YCB50/0.6 50 833 5 125 72 970 22 Y200L2-6

Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. Subject to change without prior notice. For the actual specification, please check with us when order placed. Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
