20ft T14 Liquid Sodium Tank Container

Capacity: 21,000L~26,000L
Working Pressure: 4Bar;
Certificate; CCS/LR/BV
Design Code: ASME VIII Div 1
Design Approvals: IMDG T14, ADR/RID, CSC, TIR, ISO, UIC, US/UK DOT

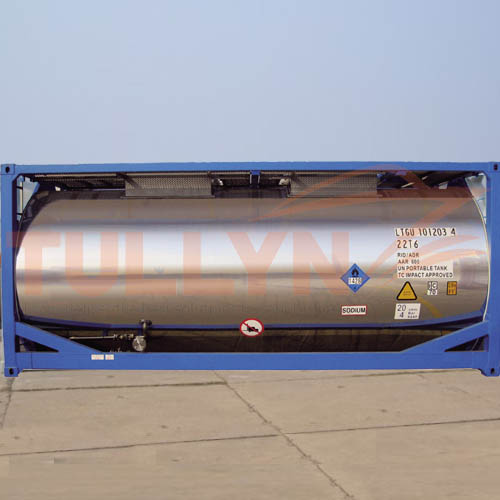

20ft T14 Liquid Sodium tank container

20ft T14 Liquid Sodium tank container Introduction

The 20ft T14 Liquid sodium tank container is designed to comply with the requirements of IMDG Code, aiming at transportation and stock liquid sodium on the road, rail, ship, trailer, etc. This Liquid sodium Tank is made of stainless steel with PU and Rock wool insulation where applicable.

Standard: IMDG, RID/ADR, ASME VII DIV2, CFR 48, USDOT (BYSP), TIR, UIC, CSC, TC, UKDFT, FR

Max Cargo Temperature: +150 degree Celsius

Certificate: CSC certificate like GL/LR/BV/ABS

All tanks are of the highest quality design and construction and conform strictly to the latest international approvals.

20ft T14 Liquid Sodium tank container Specification

Tank Type 20’ ISO full-frame universal collar tank, Type UN T14 portable, Top rails fitted.
Frame Dimensions 20’ x 8’ x 8’6”
Designed Capacity 21,000 Litres +/- 2% or 5550 US Gallon
M.G.W. 36,000 kg
Tare (est.) 5250 kgs
Max Payload 30750 kgs
Working Pressure 4 Bar
Test Pressure 6 Bar
External pressure 1 bar
Vessel Material 316L or equivalent
Manlid 500mm diameter hinged 20 point manlid
Relief Valve 65mm flange stainless steel 316 relief valve set at +4.4bar, fitted with bursting disc and pressure gauge
Airline 50mm Flowserve plug valve connected to a 2ft blind flange
Top outlet 50mm jacket heating Flowserve plug valve connected to a 2ft blind flange
Top fill 50mm hole on manlid connect to a 2ft blind flange
Gasket&Seals Flexible Graphite
Oil heating 9.7mm2 effective heating area
Walkway 475mm marine grade aluminum Q grating
Insulation&Cladding 100mm Rockwool where possible white stainless steel cladding
Vessel Design Code ASME VIII Div 1
Radiography Shell                                      ASME Spot
Dished ends                          ASME Full
Inspection Agency Lloyds Register or BV
Design Approvals IMDG T14, CFR 49, ADR/RID, CSC, TIR, ISO, US DOT

Please note that the above specifications are “general specifications” that pertain to the majority of our products. These specifications should only be used for general, informational purposes. The measurement/size of the goods delivered may be different from the data in the above table, please check with us when order placed.
