20ft T50 ISO Freon Tank Container

Capacity: 24m3
Working Pressure: 1.8MPA;
Certificate; CCS/LR/DNV
Design Code: ASME VIII Div 1
Design Approvals: IMDG T3, ADR/RID, CSC, TIR, ISO, UIC, US/UK DOT

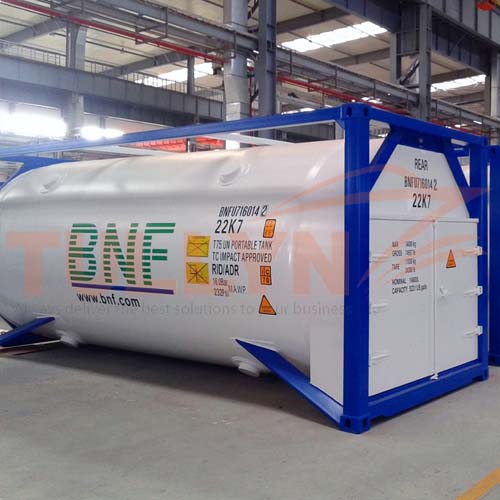

20ft T50 ISO Freon Tank Container

20ft T50 ISO Freon Tank Container Application

The 20ft T50 ISO Freon Tank Container is mainly applied to Freon storage and transport. The tanks comply with the standards of ASME and GB150. Equipment character: maximum volume in China and self-lighter.

The Freon tank container is a 20 ft ISO carbon steel container with a capacity range between 24.000 and 29.000 liters. These 20ft T50 Freon tank Containers are approved by international statutory authorities for the safe transportation of Freon, liquefied petroleum gas (propane), propylene, liquid ammonia, dimethyl ether and methanol, butadiene, isobutane, epoxyethane, methylamine in different properties such as low pressure liquefied gas under normal temperature.

Our Freon tank is separated for four purposes: tank containers for freon storage, short-sea, deep-sea shipping and rail transportation.

All tanks are of the highest quality design and construction and conform strictly to the latest international approvals.

20ft T50 ISO Freon Tank Container Specification

Tank Type

20ft Freon Tank Container
Capacity 24CBM
Frame Dimensions 6058*2438*2591mm
Design Pressure 1.8Mpa
Design temperature 0-50℃
Vessel Material

Q345R

Nominal Diameter 2418mm
Shell Thickness 14 mm
Corrosion Allowance 1 mm
Frame Material Q235B high tensile strength steel
Frame to Shell Q235B high tensile strength steel
Corner castings Q235B high tensile strength steel
Manhole 1 SET
Relief Valve 1 SET
 Ladder equipped

Please note that the above specifications are “general specifications” that pertain to the majority of our products. These specifications should only be used for general, informational purposes. The measurement/size of the goods delivered may be different from the data in the above table, please check with us when order placed.
