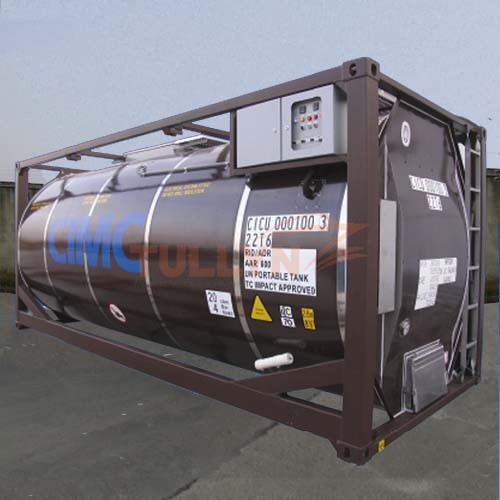

Electrical Heated Tank Container

Capacity: 24m3
Working Pressure: 4.0MPA;
Certificate; CCS/LR/DNV
Design Code: ASME VIII Div 1
Design Approvals: IMDG T3, ADR/RID, CSC, TIR, ISO, UIC, US/UK DOT
Heating: Fitted with the electrically heated system, electrical heating blanket, and electrical heating wire can be chosen.

Electrical Heated Tank Container

Electrical Heated Tank Container Application

The electrical heated tank container is a 20 ft ISO carbon steel container with a capacity range between 24.000 and 29.000 liters. These market-leading electrical heated tank containers are double skinned and heavily insulated, as well as being fitted with a proven high-efficiency heating tube layout for optimum heat transfer during the heat up operation. These tanks are available with either direct fire burner, thermal oil, or electric heating systems to suit the operator requirements.

We can supply 25,000-litre ISO bulk bitumen tank containers. Our electrical heated tank is separated for four purposes: tank containers for bitumen storage, short-sea, deep-sea shipping and rail transportation.

All tanks are of the highest quality design and construction and conform strictly to the latest international approvals.

Electrical Heated Tank Container Application

Tank Type 20’ ISO full-frame collar tank, Type UN T11 Portable Tank, insulated, fitted with Eltherm electrical heating system.
Frame Dimensions 20’ x 8’ x 8’6”
Capacity 24,000 Litres +/- 1%
M.G.W. 36,000 kg
Tare (est.) 4,000 kg +/- 3%
Max Payload 32,200 kg
Working Pressure 4 Bar
Test Pressure 6 Bar
Design Temp -40℃ to +130℃
Vessel Material SANS 50028-7 WNr 1.4402/1.4404 (C<0.03%), equivalent to 316L stainless steel Shell: Cold Rolled 2B finish Ends: polished internally to 1.2 Micron CLA
Min. Calculated Thickness 4.18 mm
Corrosion Allowance 0.20 mm
Manufacturing Thickness 4.50 mm nominal
Frame Material GB/T 1591-Q345D or SPA-H (or equivalent)
Frame to Shell 304 stainless steel
Corner castings ISO 1161 – 8 off
Vessel Design Code ASME VIII Div 1 where applicable

Please note that the above specifications are “general specifications” that pertain to the majority of our products. These specifications should only be used for general, informational purposes. The measurement/size of the goods delivered may be different from the data in the above table, please check with us when order placed.
