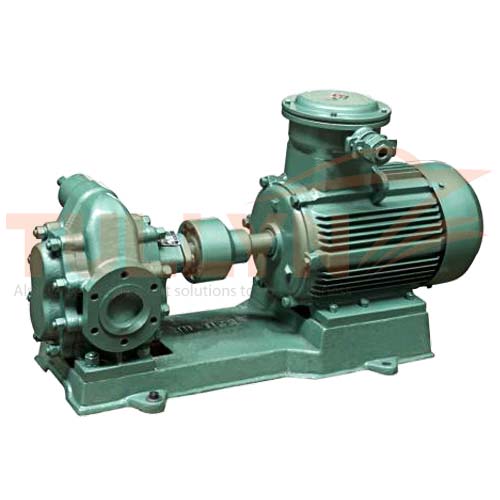

2CY Horizontal Stainless Steel Gear Oil Pump
2CY Horizontal Stainless Steel Gear Oil Pump Application
2CY series Horizontal Stainless Steel Gear oil pump is mainly to carry the lubricator in various lubricating system of mechanical equipment, also it’s suitable to carry the oils with the lube feature and their viscosity should below 300cst and the temperature should less than 300 degree-centigrade.
Furthermore, the gear oil pump in stainless steel can transport the edible oils, beverages and so on. The pump itself does not have a valve. Shaft seal has skeleton oil seal, mechanical seal and stuffing seal.
It is capable to perform as a delivery pump or boost pump in the fuel delivery system, and as a fuel pump for delivery, pressurization and injection in a fuel-supply system.It is also can be applied to a hydraulic pump supplying hydraulic power in the hydraulic system and in all industry fields work as a lubricating pump.
2CY Horizontal Stainless Steel Gear Oil Pump Specification
| Model | Capacity | Pressure | Vaccum | Diameter | Face to Face | Power |
| (m3/h) | (MPa) | (m. H2O) | (inch/mm) | (mm) | (KW) | |
| 2CY1.1/14.5 | 1.1 | 1.45 | 5 | G3/4″ | 200 | 1.5 |
| 2CY2/14.5 | 2 | 1.45 | 5 | G3/4″ | 200 | 2.2 |
| 2CY3.3/3.3 | 3.3 | 0.33 | 5 | G1″ | 200 | 1.5 |
| 2CY5/3.3 | 5 | 0.33 | 5 | G1 1/2″ | 200 | 2.2 |
| 2CY8/3.3 | 8 | 0.33 | 5 | G2″ | 260 | 3 |
| 2CY8/6 | 8 | 0.6 | 5 | G2″ | 260 | 4 |
| 2CY8/10 | 8 | 1 | 5 | G2″ | 260 | 5.5 |
| 2CY12/1.3 | 12 | 0.13 | 5 | G2″ | 260 | 4 |
| 2CY12/3.3 | 12 | 0.33 | 5 | G2″ | 260 | 5.5 |
| 2CY12/6 | 12 | 0.6 | 5 | G2″ | 260 | 5.5 |
| 2CY12/10 | 12 | 1 | 5 | G2″ | 260 | 7.5 |
| 2CY18/3.6 | 18 | 0.36 | 5 | 70 | 234 | 5.5 |
| 2CY18/6 | 18 | 0.6 | 5 | 70 | 234 | 7.5 |
| 2CY29/3.6 | 29 | 0.36 | 5 | 70 | 234 | 7.5 |
| 2CY29/6 | 29 | 0.6 | 5 | 70 | 234 | 11 |
| 2CY38/2.8 | 38 | 0.28 | 5 | 100 | 280 | 11 |
| 2CY38/6 | 38 | 0.6 | 5 | 100 | 280 | 22 |
| 2CY60/3 | 60 | 0.3 | 5 | 100 | 280 | 22 |
| 2CY100/3 | 100 | 0.3 | 5 | 150 | 400 | 30 |
| 2CY100/6 | 100 | 0.6 | 5 | 150 | 400 | 55 |
| 2CY120/3 | 120 | 0.3 | 5 | 150 | 400 | 30 |
| 2CY120/6 | 120 | 0.6 | 5 | 150 | 400 | 55 |
| 2CY150/3 | 150 | 0.3 | 5 | 150 | 400 | 37 |
| 2CY150/6 | 150 | 0.6 | 5 | 150 | 400 | 75 |
Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. Subject to change without prior notice. For the actual specification, please check with us when order placed. Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
