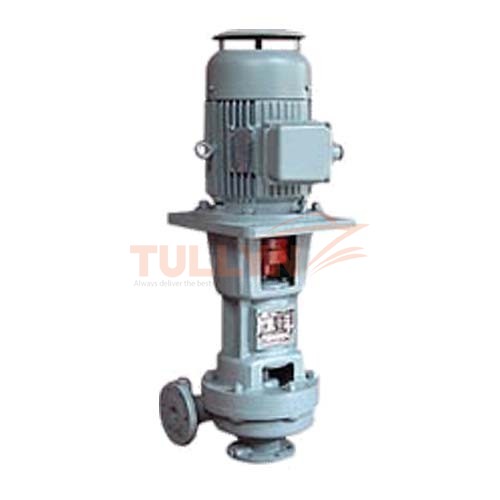

CL Series Vertical Centrifugal Marine Ballast Pump
CL Series Vertical Centrifugal Marine Ballast Pump Application
The CL Series Vertical Centrifugal Marine Ballast Pump is approved by CCS. This CL series pump is suitable for ships as ballast pumps, bottom pumps, fire pumps, cooling pumps and sanitary pumps. It can be used to transport seawater, fresh water, and other liquids without corrosiveness that temperature is not more than 80 degrees centigrade.
CLLa Type Marine Vertical Centrifugal Water Pump Specification
| model | Capacity | Head | Speed | Power | NPSH | Weight |
| (m³/h) | m | (r/min) | kw | m | kg | |
| 25CL-30 | 3.6 | 30 | 2950 | 1.1 | 3 | 65 |
| 50CL-30 | 20 | 30 | 2950 | 4 | 3 | 105 |
| 50CL-30A | 18 | 24.5 | 2950 | 3 | 3 | 93 |
| 65CL-45 | 30 | 45 | 2950 | 7.5 | 3 | 132 |
| 65CL-45A | 27 | 37 | 2950 | 5.5 | 3 | 125 |
| 65CL-65 | 25 | 65 | 2950 | 11 | 5 | 179 |
| 80CL-30 | 50 | 30 | 2950 | 7.5 | 3.5 | 132 |
| 80CL-30A | 45.5 | 25 | 2950 | 5.5 | 3.5 | 126 |
| 80CL-35 | 50 | 35 | 2950 | 7.5 | 3.5 | 132 |
| 80CL-65 | 50 | 65 | 2950 | 18.5 | 4.5 | 274 |
| 80CL-65A | 46.5 | 56 | 2950 | 15 | 4.5 | 252 |
| 80CL-65B | 44 | 50 | 2950 | 15 | 4.5 | 243 |
| 100CL-30 | 100 | 30 | 2950 | 15 | 4.5 | 232 |
| 100CL-30A | 90 | 24.5 | 2950 | 11 | 4.5 | 224 |
| 100CL-45 | 100 | 45 | 2950 | 22 | 4 | 302 |
| 100CL-45A | 90 | 36.5 | 2950 | 15 | 4 | 238 |
| 100CL-85 | 100 | 85 | 2950 | 45 | 4.5 | 534 |
| 100CL-85A | 92.5 | 73 | 2950 | 37 | 4.5 | 480 |
| 100CL-85B | 87 | 64 | 2950 | 30 | 4.5 | 465 |
| 150CL-30 | 162 | 30 | 2950 | 22 | 4.5 | 303 |
| 150CL-30A | 148 | 25 | 2950 | 18.5 | 4.5 | 261 |
| 200CL-30 | 300 | 30 | 1450 | 37 | 4 | 559 |
| 200CL-30A | 262 | 23.5 | 1450 | 30 | 4 | 544 |
| 250CL-25 | 486 | 25 | 1450 | 45 | 5 | 996 |
| 250CL-25A | 443 | 20 | 1450 | 37 | 5 | 960 |
| 300CL-30 | 792 | 30 | 1450 | 90 | 6 | 1471 |
| 300CL-30A | 720 | 25 | 1450 | 75 | 6 | 1366 |
Please note:
For more specifications, please contact our sales.
The above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. For the actual specification, please check with us when order placed. Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
