2YSLGCGOU Mining Signal and Control Cable

APPLICATION OVERVIEW
2YSLGCGOU Cable is used as control, signaling and bus cables for process data processing and automation units in open-cast mining applications.

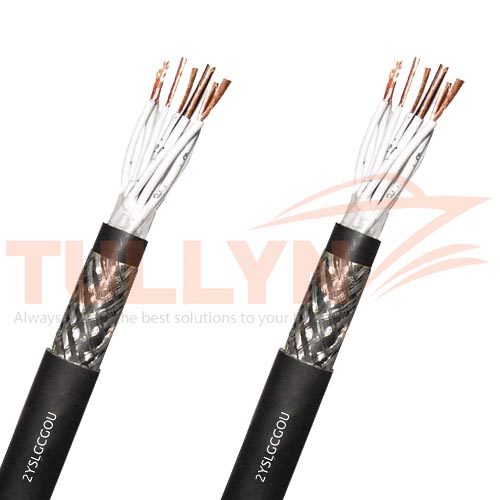

2YSLGCGOU Mining Signal and Control Cable

2YSLGCGOU Mining Signal and Control Cable Application

2YSLGCGOU/2YSLGCGÖU is used as control, signaling and bus cables for electric and electronic equipment, such as for measured value and process data processing and automation units in open-cast mining applications, suitable for laying alongside conveyor belts and on material handling equipment.

2YSLGCGOU Mining Signal and Control Cable Construction

2YSLGCGOU Mining Signal and Control Cable Construction

Conductor: Flexible red copper conductor Cl. 5, acc. to IEC 60228, DIN VDE 0295
Insulation: PE special compound
Cores colour: white with consecutive numbers
Stranding: pairs in layers
Inner sheath: special EM2 compound acc. to DIN VDE 0207, part 21
Screen: tinned copper braiding
Outer sheath: black (RAL 9005), special EM2 compound acc. to DIN VDE 0207, part 21

2YSLGCGOU Mining Signal and Control Cable Technical Data

Temperature range
Fixed installation: – 40°C + 60°C
Flexible installation: – 25°C + 60°C
Temperature at conductor:
In service: + 60°C
In short circuit: + 150°C
Nominal voltage: Uo/U 250 V
Test voltage: 1500 V
Operating voltage: A.C. Uo/U = 350 VD.C. Uo/U = 350 V
Tensile strength: 15 N/mm2
Torsional stress: +/- 25°/m
Weather resistance: outdoor use, resistant to ozone, moisture, and water

2YSLGCGOU Mining Signal and Control Cable Specification

No. of cores xcross section Outer-Ø ca. mm Cable weight approx. Tensile strength AWG
n x mm2 ± 10% kg/km N no.*)
2x2x1 12 245 60 18
5x2x1 17.3 420 150 18
10x2x1 21.5 660 300 18
20x2x1 26.6 1030 600 18

Other Specification will be available upon request.
Photographs are not to scale and do not represent detailed images of the respective products.

Note: All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All specifications are subject to change without prior notice. Photographs are not to scale and do not represent detailed images of the respective products. All pictures shown are for illustration purposes only. Actual product may vary. Other Specification will be available upon request.
