GLI Flexible Energy Chain Fiber Optic Cable
GLI Flexible Energy Chain Fiber Optic Cable Application
This GLI Flexible Energy Chain Fiber Optic Cable is intended for energy chain system of port equipment, and for non-interfere data and signal transmission.coolant resistant and oil resistant. This cable can be used for maximum load requirements with torsion movements, Virtually unrestricted oil resistance, even against organic oils. What is more, this cable can be used Indoor and outdoor applications, UV-resistant especially for robots and movements in the 3D range, Robots, handling.
With its fibers made of pure quartz glass and are available in different versions, OM1, OM2, OM3, and OM4, for office and industrial applications and for indoor and outdoor use. Other formats include cables which can be reeled and others which have a halogen-free construction.
Seamless communication between machines is becoming more and more complex every day. Finding the right cables for these types of applications is very important. Many plant manufacturers and operators have EMC problem that occurs sporadically or over time. These problems are often based on conventional bus cables that either has insufficient or unreliable shielding.
This Flexible Energy Chain Fiber Optic Cable is used in high mechanical load requirements with maximum EMI protection. Furthermore, it can be used indoor and outdoor applications, for unsupported and gliding travel up to 328 ft (100m) and more. Also, it can be used in storage and retrieval units, machine tools, packaging machines, quick handling, cranes, refrigerating sector.

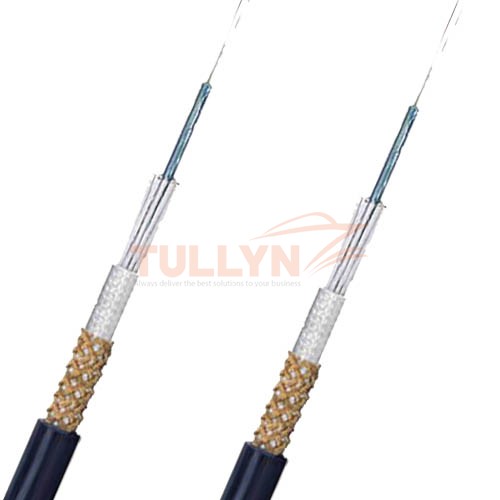

GLI Flexible Energy Chain Fiber Optic Cable Construction
| Strength Core: | high tensile strength aramid fibers |
| Inner Sheath: | TPE Compound |
| Fiber Optic: | 6 or 12 core single mode or multimode flexible fiber optic |
| Reinforcement layer: | Aramid braid for torsion protection |
| Outer sheath: | PUR Compound |
| Sheath Colour: | Black |
GLI Flexible Energy Chain Fiber Optic Cable Technical Data
| long-term working temperature | 60℃ |
| Temperature Range | Fixed Install:-40℃~70℃ Mobile Install:-35℃~70℃ |
| Fiber Attenuation | 850mn for 2.5—3.5db/km,1300mn for 0.7—1.5 db/km |
| Fiber Bandwidth | 850mn for 160—200MHZ/km,1300mn for 200—500MHZ/km |
| Min.Bending radius | Fixed Install:8OD Mobile Install:15OD |
GLI Flexible Energy Chain Fiber Optic Cable Specification
| Construction mm | Nom.OD of cable mm | Max. OD of cable mm | Ref. weight of cable(Kg/km) |
| 6×50/125 | 15 | 16 | 380 |
| 12×50/125 | 15 | 16 | 380 |
| 18×50/125 | 15 | 16 | 380 |
| 6×62.5/125 | 15 | 16 | 380 |
| 12×62.5/125 | 15 | 16 | 380 |
| 18×62.5/125 | 15 | 16 | 380 |
Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. For the actual specification, please check with us when order placed.
