3GCL Series Heavy Oil Marine Vertical Three Screw Pump

Working Principle: Three Screw (One main, two driven screws)
Main applications: Heavy Oil, bitumen, viscous fluids
Driver: Electric motor, diesel motor.
Casing/Inner parts material: Cast iron, Stainless Steel/Cast iron, Stainless steel, Bronze
Maximum discharge-side pressure: 2.5mpa (25bar)
Flow rate range: 0.6-120 m³/h

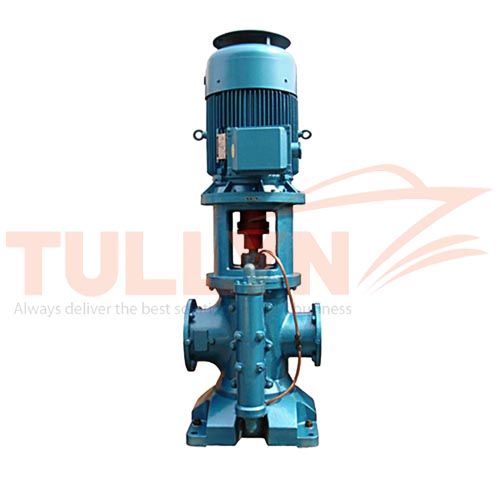

3GCL Series Heavy Oil Marine Vertical Three Screw Pump

3GCL Series Heavy Oil Marine Vertical Three Screw Pump Application

3GCL Series Heavy Oil Marine Vertical Three Screw Pump applies to deliver clean and non-corrosive medium which has lubrication property at the temperature below 150 C with the viscosity of 3-1500 cSt. The pump working pressure range from 0.6 MPa to 6.0 MPa and flow rate range from 0.6 to 300 m3/h.

3GCL high efficiency vertical marine pump main suited to fuel delivering, hydraulic engineering, shipping engineering, petrochemical and other industrial fields.

The pumps are sealed generally by a mechanical seal and driven by the motor through the claw coupling seeing from the shaft to pump, clockwise rotaion.

Model Explanation

for example: 3 GCL 70*2/ 0.6
3GCL — Vertical Three Screw Heavy Oil Transfer Pump
70*2 — classifications and Number
0.6 — Pressure (Mpa)

3GCL Series Heavy Oil Marine Vertical Three Screw Pump Specification

Model Capacity Pressure Speed Suction Power
(m3/h) (MPa) (r/min) (m) (KW)
50×2 18 0.4 2900 4.5 4
50×2 17.5 0.6 2900 4.5 5.5
50×2 16 0.8 2900 4.5 7.5
50×2 9 0.4 1450 4.5 2.2
50×2 8.2 0.6 1450 4.5 3
50×2 7.5 0.8 1450 4.5 4
70×2 25 0.4 1450 4.5 5.5
70×2 24.5 0.6 1450 4.5 11
70×2 24 0.8 1450 4.5 11
70×2 16 0.4 970 4.5 4
70×2 15 0.6 970 4.5 5.5
70×2 14 0.8 970 4.5 7.5
85×2 44 0.4 1450 4.5 11
85×2 43 0.6 1450 4.5 15
85×2 41 0.8 1450 4.5 18.5
85×2 30 0.4 970 4.5 7.5
85×2 28 0.6 970 4.5 11
85×2 26 0.8 970 4.5 15
100×2 72 0.4 1450 4 18.5
100×2 70 0.6 1450 4 22
100×2 69 0.8 1450 4 30
100×2 47 0.4 970 4 11
100×2 45 0.6 970 4 15
100×2 43 0.8 970 4 18.5
110×2 96 0.4 1450 4 22
110×2 94 0.6 1450 4 30
110×2 92 0.8 1450 4 37
110×2 63 0.4 970 4 15
110×2 60 0.6 970 4 18.5
110×2 56 0.8 970 4 22

Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. Subject to change without prior notice. For the actual specification, please check with us when order placed. Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
