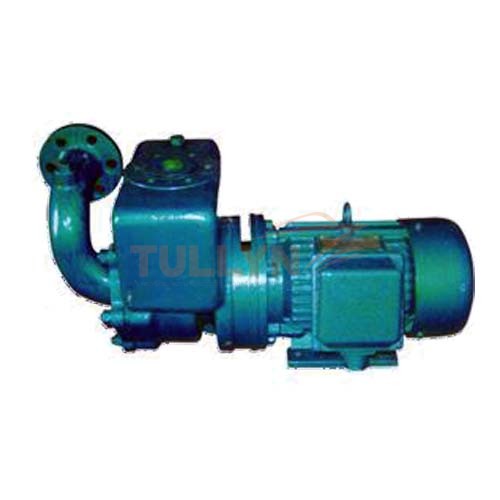

CWX Type Marine Self-priming centrifugal vortex pump
CWX Type Marine Self-priming centrifugal vortex pump Application
CWX Type Marine Self-priming centrifugal Vortex pump is applicable to pumping clean water, washing and sanitary fresh water or sea water for drinking, washing and for sanitation. This type of Self-priming marine centrifugal pumps is of small volume, low weight and high function, easily fixed and used.
The pump with mechanical seal, the sealing performance is good. The pump has stable work, long life advantages. The temperature of the medium that transported by this pump should be lower than 85℃.
CWX Type Marine Self-priming centrifugal vortex pump Specification
(50Hz 3φ 380V) Main technical parameter
| Type | Capacity | Head | Speed | NPSH | Suction head | Shaft power | Efficiency |
| (m3/h) | (m) | (r/min) | (m) | (m) | (kw) | (%) | |
| 1.5CWX-2 | 3 | 40 | 2900 | 4 | 6 | 2 | 16.3 |
| 1.5CWX-3 | 6.5 | 35 | 2900 | 4 | 6 | 2.3 | 26.9 |
| 1.5CWX-4 | 10 | 35 | 2900 | 4 | 6 | 2.5 | 38.1 |
| 1.5CWX-2A | 3 | 40 | 2900 | 4 | 6 | 2 | 16.8 |
| 1.5CWX-3A | 6.5 | 35 | 2900 | 4 | 6 | 2.3 | 26.9 |
| 1.5CWX-4A | 10 | 35 | 2900 | 4 | 6 | 2.5 | 38.1 |
Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. For the actual specification, please check with us when order placed. Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
