Products

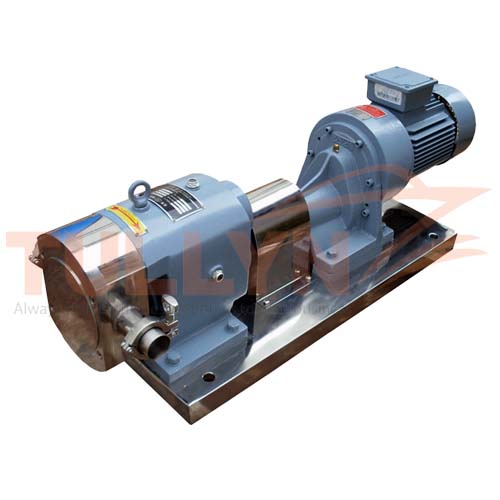

3RP Series Stainless Steel Sanitary Rotary Lobe Pump

1) Material:SUS304/ SUS 316L
2) Flow rate: 3L/100R -200L/100R
3) Capacity: 300-43000L/H
4) Speed: 200-500rpm
5) Power: 0.55-37kw

3RP Series Stainless Steel Sanitary Rotary Lobe Pump

3RP Series Stainless Steel Sanitary Rotary Lobe Pump Application

3RP Series Stainless Steel Sanitary Rotary Lobe Pump belongs to positive displacement pump and has the advantages of outstanding self-priming ability, high efficiency, and long life. It applies to delivering suspension liquid with soft solid particles, corrosive medium and suspension liquid.

The delivered medium temperature range from -30~130℃ and viscosity range from 30cst to 1.0×105cst. The parts of contact with medium adopt stainless steel. The rotating speed can be adjusted according to the delivered medium’s physical property.

This 3RP series rotary lobe pump is a food grade pump, also called three-lobe pump, sole pump is widely applied in the beverage, food, dairy, pharmaceutical, chemical and process industries, to transport thick liquid material.

3RP Series Stainless Steel Sanitary Rotary Lobe Pump Specification

Model Displacement Max.Differential
Pressure
Port Max.Speed Motor
Power
(L/100r) (Mpa) (mm) (r/min) (kw)
3RP6/0.6 6 0.6 25 960 1.5
3RP8/0.4 8 0.4 25 960 1.5
3RP12/1.0 12 1 25 960 4
3RP21/0.6 21 0.6 40 960 5.5
3RP28/0.4 28 0.4 50 960 4
3RP36/1.0 36 1 50 720 11
3RP52/0.6 52 0.6 50 720 11
3RP66/0.4 66 0.4 80 720 7.5
3RP78/1.0 78 1 80 720 22
3RP107/0.6 107 0.6 80 720 18.5
3RP156/0.4 156 0.4 100 720 18.5

Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. Subject to change without prior notice. For the actual specification, please check with us when order placed. Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
