40ft T50 ISO LPG Tank Container

Capacity: 24m3
Working Pressure: 1.8MPA;
Certificate; CCS/LR/DNV
Design Code: ASME VIII Div 1
Design Approvals: IMDG T3, ADR/RID, CSC, TIR, ISO, UIC, US/UK DOT

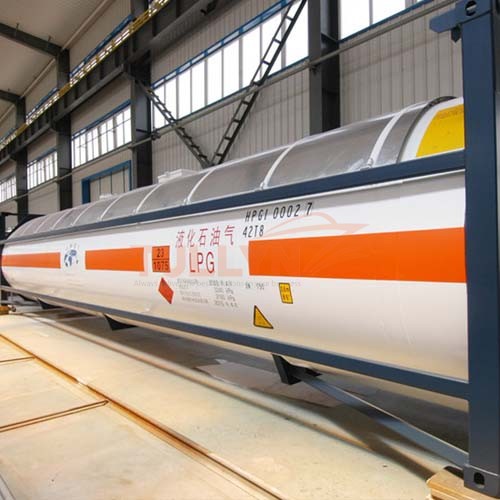

40ft T50 ISO LPG Tank Container

40ft T50 ISO LPG Tank Container Application

The 40ft T50 ISO LPG Tank Container is mainly applied to LPG storage and transport. The tanks comply with the standards of ASME and GB150. Equipment character: maximum volume in china and self-lighter.

The LPG tank container is a 40 ft ISO carbon steel container with a capacity range between 24.000 and 29.000 liters. These 40ft T50 LPG tank Containers are approved by international statutory authorities for the safe transportation of LPG, liquefied petroleum gas (propane), propylene, liquid ammonia, dimethyl ether and methanol, butadiene, isobutane, epoxyethane, methylamine in different properties such as low pressure liquefied gas under normal temperature.

Our LPG tank is separated for four purposes: tank containers for milk storage, short-sea, deep-sea shipping and rail transportation.

All tanks are of the highest quality design and construction and conform strictly to the latest international approvals.

T50 ISO LPG Tank Container Specification

Tank Type

20ft LPG Tank Container
Capacity 24CBM
Frame Dimensions 6058*2438*2591mm
Design Pressure 1.8Mpa
Design temperature 0-50℃
Vessel Material

Q345R

Nominal Diameter 2418mm
Shell Thickness 14 mm
Corrosion Allowance 1 mm
Frame Material Q235B high tensile strength steel
Frame to Shell Q235B high tensile strength steel
Corner castings Q235B high tensile strength steel
Manhole 1 SET
Relief Valve 1 SET
 Ladder equipped



Tank Type 40FEET LPG Tank Container
Capacity 51.5CBM
Frame Dimensions 12192*2438*2591mm
Design Pressure 1.8Mpa
Design temperature 0-50℃
Vessel Material Q345R
Nominal Diameter 2415mm
Shell Thickness 12.5 mm
Corrosion Allowance 1 mm
Frame Material Q235B high tensile strength steel
Frame to Shell Q235B high tensile strength steel
Corner castings Q235B high tensile strength steel
Manhole 1 SET
Relief Valve 1 SET
 Ladder equipped

Please note that the above specifications are “general specifications” that pertain to the majority of our products. These specifications should only be used for general, informational purposes. The measurement/size of the goods delivered may be different from the data in the above table, please check with us when order placed.
