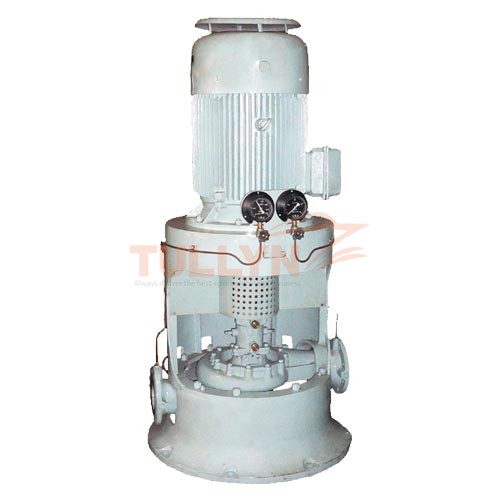

CLV Series Marine Vertical Centrifugal Pump
CLV Series Marine Vertical Centrifugal Pump Application
CLV series Marine vertical centrifugal pump is our newly developed product driven by a marine motor. It is widely used for transporting fresh water, seawater, condensate, oils and saline water. The transported medium shall not contain any abrasive materials and any other chemicals corrosive on the pump.
It widely serves as freshwater and seawater cooling pump, burr pump, ballast pump and general pump, and used for seawater desalting device and marine pressure cabinet. The transported medium temperature shall not exceed 80℃.
AELC self-priming device can be assembled according to users’ order with additional cost, to achieve self-priming function. Viewing from the motor end downward, this series pump rotates clockwise.
CLV Series Marine Vertical Centrifugal Pump Specification
(50Hz 3φ 380V) Main technical parameter
| Type | Capacity | Head | Speed | NPSHr | Shaft power |
| (m3/h) | (m) | (r/min) | (m) | (kW) | |
| CLV65-200A | 27 | 14.5 | 1450 | 2.5 | 1.8 |
| CLV65-280A | 30 | 21 | 1450 | 2.5 | 3.1 |
| CLV65-300A | 30 | 28 | 1450 | 2.5 | 4.4 |
| CLV65-350A | 25 | 41 | 1450 | 2.5 | 6.1 |
| CLV80-200A | 48 | 14.5 | 1450 | 2.5 | 2.8 |
| CLV80-220A | 45 | 62 | 2900 | 4 | 12 |
| CLV80-220B1 | 45 | 48 | 2900 | 4 | 9.8 |
| CLV80-280A | 54 | 21.5 | 1450 | 3 | 4.5 |
| CLV80-300A | 46 | 28 | 1450 | 2.8 | 5.8 |
| CLV80-350A | 54 | 41 | 1450 | 3 | 10.5 |
| CLV80-350B | 40 | 35 | 1450 | 2.5 | 6.9 |
| CLV80-350 B2 | 42 | 41 | 1450 | 2.5 | 8.4 |
| CLV100-200 A | 83 | 14.5 | 1450 | 3 | 4.6 |
| CLV100-220 A | 95 | 68.5 | 2900 | 4.5 | 24.2 |
| CLV100-220 B | 87 | 55 | 2900 | 4.5 | 18.5 |
| CLV100-280 A | 83 | 21 | 1450 | 3 | 6.4 |
| CLV100-300 A | 83 | 28 | 1450 | 2.8 | 9.1 |
| CLV100-350 A | 83 | 41 | 1450 | 3.2 | 14.2 |
| CLV125-200 A | 116 | 14 | 1450 | 3.5 | 5.9 |
| CLV125-220 A | 149 | 68.5 | 2900 | 5.5 | 36.9 |
| CLV125-220 B | 128 | 55 | 2900 | 5 | 26.7 |
| CLV125-270 A | 140 | 86 | 2900 | 5 | 44.7 |
| CLV125-280 A | 125 | 21 | 1450 | 3.5 | 9.6 |
| CLV125-300A | 125 | 28 | 1450 | 3 | 14.3 |
| CLV125-350 A | 125 | 41 | 1450 | 3.5 | 19.8 |
| CLV125-350 B | 116 | 34 | 1450 | 3.5 | 15.9 |
| CLV150-200 A | 190 | 14 | 1450 | 3.5 | 9.5 |
| CLV150-220 A | 273 | 62 | 2900 | 4.5 | 61.4 |
| CLV150-270 A | 265 | 86 | 2900 | 4 | 82.1 |
| CLV150-280 A | 182 | 21 | 1450 | 3.5 | 13.4 |
| CLV150-300 A | 182 | 27.5 | 1450 | 4 | 17.7 |
| CLV150-350 A | 190 | 41 | 1450 | 3.5 | 29.1 |
| CLV150-350 B2 | 190 | 35 | 1450 | 3.5 | 25.6 |
| CLV200-200 A | 332 | 13.7 | 1450 | 4 | 15.9 |
| CLV200-280 A | 330 | 20.5 | 1450 | 4.5 | 23.4 |
| CLV200-280 B | 290 | 17 | 1450 | 4.5 | 17.3 |
| CLV200-280 B2 | 250 | 20.5 | 1450 | 4 | 17.9 |
| CLV200-300 A | 325 | 27.5 | 1450 | 4.5 | 30.3 |
| CLV200-350 A | 330 | 41 | 1450 | 4.5 | 46.5 |
| CLV250-280 A | 500 | 20.5 | 1450 | 4.5 | 34.8 |
| CLV250-280 B | 415 | 17 | 1450 | 4.2 | 24.4 |
| CLV250-300 B2 | 415 | 27 | 1450 | 4.5 | 38.9 |
| CLV250-350 A | 500 | 34 | 1450 | 5 | 56.8 |
| CLV250-360 A | 500 | 14 | 960 | 4 | 23.5 |
| CLV250-360 B2 | 400 | 14 | 960 | 3.5 | 19.4 |
| CLV300-300 A | 705 | 27.5 | 1450 | 4.5 | 64.7 |
| CLV300-360 A | 660 | 14 | 960 | 4.5 | 31.8 |
| CLV350-280 A | 830 | 20.5 | 1450 | 4.8 | 57.6 |
| CLV350-280 B2 | 620 | 20.5 | 1450 | 4.5 | 44.1 |
| CLV350-360 A | 829 | 14 | 960 | 3.8 | 39.4 |
(60Hz 3φ440V) Main technical parameter
| Type | Capacity | Head | Speed | NPSHr | Shaft power |
| (m3/h) | (m) | (r/min) | (m) | (kW) | |
| CLV165-200A | 33 | 21.5 | 1750 | 2.8 | 3.2 |
| CLV165-280A | 36 | 31 | 1750 | 3.2 | 5.2 |
| CLV165-300A | 36 | 41 | 1750 | 3.2 | 7.4 |
| CLV165-350A | 30 | 60 | 1750 | 2.8 | 10.6 |
| CLV180-200A | 58 | 21.5 | 1750 | 3.2 | 4.9 |
| CLV180-220A | 54 | 90 | 3500 | 5.5 | 21.4 |
| CLV180-220B1 | 54 | 70 | 3500 | 4.8 | 17.5 |
| CLV180-280A | 65 | 31 | 1750 | 3.8 | 7.8 |
| CLV180-300A | 56 | 41 | 1750 | 3.5 | 10.1 |
| CLV180-350A | 65 | 60 | 1750 | 3.8 | 18.6 |
| CLV180-350B | 48 | 51 | 1750 | 3.5 | 11.8 |
| CLV180-350 B2 | 50 | 60 | 1750 | 3.5 | 14.3 |
| CLV1100-200 A | 100 | 21 | 1750 | 4 | 7.8 |
| CLV1100-220 A | 115 | 100 | 3500 | 5.8 | 40.8 |
| CLV1100-220 B | 105 | 80 | 3500 | 5.8 | 32.5 |
| CLV1100-280 A | 100 | 31 | 1750 | 4 | 11.6 |
| CLV1100-300 A | 100 | 41 | 1750 | 3.8 | 15.6 |
| CLV1100-350 A | 100 | 60 | 1750 | 4.2 | 24.7 |
| CLV1125-200 A | 140 | 20.5 | 1750 | 4.5 | 10.2 |
| CLV1125-220 B | 150 | 80 | 3500 | 6.8 | 45.2 |
| CLV1125-220 A | 180 | 100 | 3500 | 7.3 | 64.8 |
| CLV1125-270 A | 170 | 125 | 3500 | 6.8 | 81.7 |
| CLV1125-280 A | 150 | 31 | 1750 | 4 | 16.8 |
| CLV1125-300 A | 150 | 41 | 1750 | 3.5 | 24.5 |
| CLV1125-350 A | 150 | 60 | 1750 | 4.3 | 34.3 |
| CLV1125-350 B | 140 | 50 | 1750 | 4 | 27.9 |
| CLV1150-200 A | 230 | 20.5 | 1750 | 4.3 | 16.7 |
| CLV1150-220 A | 330 | 90 | 3500 | 6.8 | 105.5 |
| CLV1150-270 A | 320 | 125 | 3500 | 5.3 | 143.6 |
| CLV1150-280 A | 220 | 31 | 1750 | 4.5 | 24.7 |
| CLV1150-300 A | 220 | 40 | 1750 | 5.3 | 32.1 |
| CLV1150-350 A | 230 | 60 | 1750 | 4.5 | 51.3 |
| CLV1150-350 B1 | 230 | 51 | 1750 | 4.8 | 44.7 |
| CLV1200-200 A | 400 | 20 | 1750 | 4.8 | 27.9 |
| CLV1200-280 A | 400 | 30 | 1750 | 6 | 41.2 |
| CLV1200-280 B | 350 | 25 | 1750 | 5.8 | 31.4 |
| CLV1200-280 B2 | 300 | 30 | 1750 | 5.3 | 31.4 |
| CLV1200-300 A | 390 | 40 | 1750 | 5.8 | 53.4 |
| CLV1200-350 A | 400 | 60 | 1750 | 5.8 | 82 |
| CLV1250-280 A | 600 | 30 | 1750 | 5.8 | 61.1 |
| CLV1250-280 B | 500 | 25 | 1750 | 5.5 | 43.3 |
| CLV1250-300 B2 | 500 | 40 | 1750 | 5.8 | 69.5 |
| CLV1250-350 A | 600 | 50 | 1750 | 6.5 | 100.2 |
| CLV1250-360 A | 600 | 20 | 1150 | 4.8 | 40.3 |
| CLV1250-360 B2 | 480 | 20 | 1150 | 4.8 | 34.3 |
| CLV1300-300 A | 850 | 40 | 1750 | 5.8 | 113.5 |
| CLV1300-360 A | 800 | 20 | 1150 | 5.8 | 55.1 |
| CLV1350-280 A | 1000 | 30 | 1750 | 6 | 101.6 |
| CLV1350-280 B2 | 750 | 30 | 1750 | 5.8 | 78.1 |
| CLV1350-360 A | 1000 | 20 | 1150 | 4.8 | 67.9 |
Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. For the actual specification, please check with us when order placed. Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
