Copper Clad Steel Earthinging Rod

Application: Copper Clad Steel Stranded Wire can be used as earthing pole for electrical power industry. Much cost can be saved by using this newly-developed product for grounding.It is really the best choice for the grounding system.

Copper Clad Steel Earthing Rod

Copper Clad Steel Earthing Rod Application

Copper Clad Steel Earthing Rod can be widely used in the communications industry, power systems, building systems, military installations, railway systems, broadcasting systems and other equipment industries, the AC and DC work, safely protected, especially suitable for harsh surface environment, corrosion resistance requirements to ground engineering, its market prospect is very broad.

Copper Clad Steel Earthing Rod Description

Copper clad steel ground rod are made of high-quality steel covered with 99.9% electrolytic copper molecular.The steel core is low carbon content is about 0.15%. It is very uniform copper layer and the thickness of 0.254mm or more.

Products have conductive properties of copper and the tensile strength of steel. Since the copper layer and steel material is a binding molecule, the copper layer is not easily peeled off, and will not crack when bent in operation.

The copper layer is bonded to steel core through an electrolytic process that ensures a perfect and tough bonding between the steel and the copper the ground rods are fully covered with copper without any cracks, holes, cavities etc.and prevent exposure of the steel core to soil and moisture. Therefore it can resist corrosion better and has the capacity of being driven to great depths.

Copper Clad Steel Earthing Rod Features

1.The advanced automatic electroplating production lines and four-dimension continuous speed electroplating processes ensure the uniform coating and stable performance.

2.“Accelerate corrosion experiments” are carried by China authority department with different soil types, and the service life is proven more than 40 years.

3.The factory lab is equipped with advanced analytical instruments, e.g. atomic absorption spectrophotometer, UV-Vis spectrophotometer, conductivity meter, COD meter, PH meter etc. analyzed instruments. It also includes Metallurgical Microscopy, universal testing machine, Salt Spray test chamber, and thickness tester etc. These instruments can analyze and test dozens of technical parameters during the plating production process, which ensures the reliable electroplating process.

Copper Clad Steel Earthing Rod Specification

No. Dia.(mm) Threaded(in) Copper layer
thickness(mm)
Length of supply(mm)
1 9 3/8 0.254 1200 1500 1800 2400 3000 6000
2 12.5 1/2 0.254 1200 1500 1800 2400 3000 6000
3 14.2 5/8 0.254 1200 1500 1800 2400 3000 6000
4 17.2 3/4 0.254 1200 1500 1800 2400 3000 6000
5 23 1 0.254 1200 1500 1800 2400 3000 6000

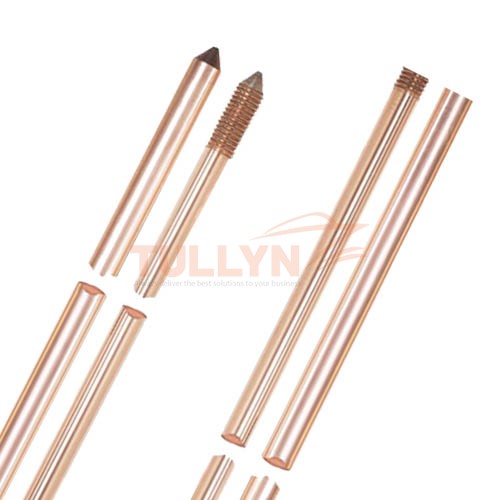

We can supply you three shapes as:
1) Ground Rod can be made double heads thread, thread can be packed by plastic sheath
2) One end is pointed and the other end is threaded for extend
3) One end is pointed and the other end is flat. *Special size and copper thickness can be supplied on request.
