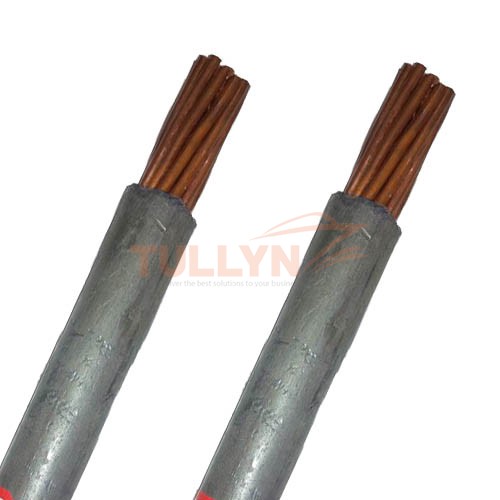

Lead Covered Stranded Copper Wire

Application: Lead Covered Stranded Copper Wire is mainly applicable to horizontal grounding for the power plant and substation and other occasions where requires low grounding resistance and high acid/alkali corrosion.

Lead Covered Stranded Copper Wire

Lead Covered Stranded Copper Conductor Application

Lead Coated Stranded Copper Wire used High-conductivity soft-drawn stranded copper wire which made in accordance with BS EN 13601 (previously BS1432-C101), completely encased within a lead sheath (Pb).

This type of earthing material is suitable for use within areas with extremely high soil contamination and/or petrochemical environments.

Lead Covered Stranded Copper Conductors are widely used in various electrical applications. We also ensure that these copper profiles are made available in strict dimensional tolerances with necessary surface treatment like electro-plated tin plating and other options as demanded.

Lead Covered Stranded Copper Wire Construction

Conductor material: Stranded bare copper wire
Sheath: Lead

Lead Covered Stranded Copper Wire Specification

C.S.A. (mm2) STRANDING No./DIA(mm)* WEIGHT(Kg/m)
185 37/2.52 2.67
240 61/2.25 3.30
300 61/2.52 3.95
400 61/2.85 5.00

25m/roll or 50m/roll (As requested) Outer packing: 8 rolls/carton or 4 rolls/carton
Photographs are not to scale and do not represent detailed images of the respective products.
Please note that the above specifications are “general specifications” that pertain to the majority of our products. These specifications should only be used for general, informational purposes. The measurement/size of the goods delivered may be different from the data in the above table, please check with us when order placed.
