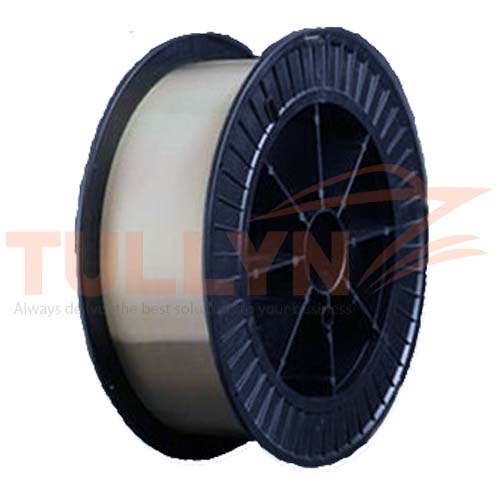

CuAl8Ni2 Ni-Aluminum bronze Welding Wire

BS EN Specification: CuAl8Ni2
DIN 1733 Specification: SG-CuAl8Ni2
Size 0.8㎜ 0.9㎜ 1.0㎜ 1.2㎜ 1.6㎜ 2.0㎜
Applications: BS EN 14640 CuAl8Ni2 welding wire is particularly suitable for CuAlNi alloyed metals. Particularly suitable for joining of steel and Cu-Al alloys.

CuAl8Ni2 Nickel-Aluminum Bronze Welding Wire

CuAl8Ni2 Nickel-Aluminum Bronze Welding Wire APPLICATION

CuAl8Ni2 Wire electrode used for copper aluminum alloys with Ni and Fe addition. Weld cladding on cast iron materials and steel. Mixed joints of aluminum bronze steel. CuAl-wire/rod for joining copper-aluminum alloys (7-9% Al) containing Nickel Manganese and Iron. Applications include overlaying of steel. Suitable for welding on cast iron.

It is resistant to seawater and cavitation resistant. Good suitability for simultaneous stress-strain caused be seawater, cavitation, and erosion

CuAl8Ni2 is a nickel-aluminum-bronze alloy used to weld cast and wrought nickel-aluminum bronze. It has excellent resistance to corrosion, erosion, and cavitations in salt or brackish water.Its applications include ship fittings, ship propellers, power plant valves, piping systems, intake screens, oil recovery pumps, and propeller gear housings.

CuAl8Ni2 Nickel-Aluminum Bronze Welding Wire Physical and machanical data

Solids-Temperature 1030℃
Density 7.5kg/dm³
Elongation 30%
Liquids-Temperature 1050℃
Tensile Strength 430-540N/mm²
Brinell Hardness 130-150HB

CuAl8Ni2 Nickel-Aluminum Bronze Welding Wire PACKING

Make-up Weight/Lengtd Dimension
Drum / bedrabox 175 – 200 kg 0,80 – 1,60 mm
SD300 / BS300 / K300 12 – 15 kg 0,80 – 2,40 mm
H500 / H560 / H760 150 – 250 kg 0,80 – 2,40 mm
Coils 25 – 100 kg 1,60 – 6,00 mm
Rods 250 – 3000 mm 1,60 – 6,00 mm

CuAl8Ni2 Nickel-Aluminum Bronze Welding Wire CHEMICAL COMPOSITION(%)

Standard ISO24373 GB/T9460 BS EN14640 DIN 1733
Class Cu6327 SCu6327 Cu6327 2.0922
Alloy CuAl8Ni2Fe2Mn2 CuAl8Ni2Fe2Mn2 CuAl8Ni2 SG-CuAl8Ni2
Cu bal. bal. bal. bal.
Al 7.0-9.5 7.0-9.5 7.0-9.5 7.5-9.5
Fe 0.5-2.5 0.5-2.5 0.5-2.5 1.5-2.5
Mn 0.5-2.5 0.5-2.5 0.5-2.5 1.0-2.5
Ni 0.5-3 0.5-3 0.5-3 1.8-3
P
Pb 0.02 max 0.02 0.02 max 0.02
Si 0.2 max 0.2 0.2 max 0.2
Sn
Zn 0.2 max 0.2 0.2 max 0.2
Other 0.4 max 0.4 0.4 max 0.4

Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. For the actual specification, please check with us when order placed.
