SG-CuSn12 Phosphor Bronze Welding Wire

DIN1733 Specification: DIN 1733 SG-CuSn12
BS EN Specification: BS EN14640 CuSn12P
ISO24373 Specification: CuSn12P
Size 0.8㎜ 0.9㎜ 1.0㎜ 1.2㎜ 1.6㎜ 2.0㎜
Applications: DIN 1733 SG-CuSn12 is suitable for all welding procedures, often used for wear-resistance surfacing, as well as joining and repair welding of bronzes. Also particularly suitable for oven brazing.

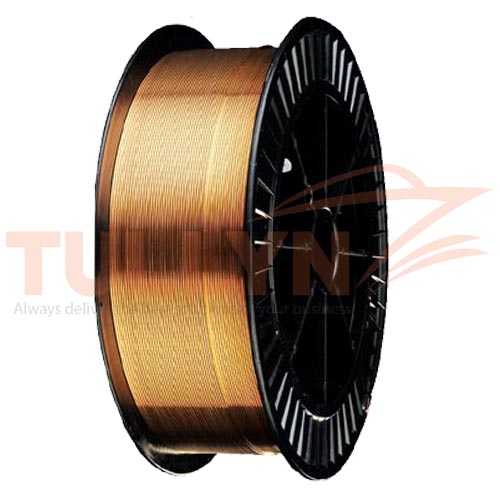

SG-CuSn12 Phosphor Bronze Welding Wire

SG-CuSn12 Phosphor Bronze Welding Wire Application

SG-CuSn12 Phosphor Bronze Welding Wire is a solid wire for GMAW used to weld copper-tin-bronzes as well as for copper-tin-castings. Often applied to surface worn pieces as it has a good resistance to wear.

SG-CuSn12 Phosphor Bronze Welding Wire has extremely high endurance and corrosion resistance. Suitable as mining cable for explosives in geological exploration.

Tin Bronze is a copper-tin based welding alloy containing much higher percentage of tin (approx. 12%) than Phosphor Bronze. This alloy has high strength and excellent wear and corrosion resistance due to the presence of tin in the alloy. It is suitable for both MIG and TIG welding processes and used for argon arc welding of copper-based alloys and brazing of steel.

SG-CuSn12 Phosphor Bronze Welding Wire Physical & Mechanical Properties:

Solids-Temperature 825℃
Density 8.6kg/dm³
Elongation 5%
Liquids-Temperature 990℃
Tensile Strength 320N/mm²
Brinell Hardness 120HB

SG-CuSn12 Phosphor Bronze Welding Wire CHEMICAL COMPOSITE(%)

Standard ISO24373 GB/T9460 BS EN14640 DIN 1733
Class Cu5410 SCu5410 Cu5410 2.0156
Alloy CuSn12P CuSn12P CuSn12P SG-CuSn12
Cu bal. bal. bal. bal.
Al 0.005 max 0.005 0.01 max 0.01
Fe 0.1 max 0.1
P 0.01-0.4 0.01-0.4 0.4 0.01-0.35
Pb 0.02 max 0.02 0.02 max 0.02
Sn 11.0-13.0 11.0-13.0 11.0-13.0 11.0-13
Zn 0.05 max 0.05 0.1 max 0.1
Other 0.4 max 0.4 0.4 max 0.4

Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. For the actual specification, please check with us when order placed.
