Products

CYL Series Marine Semi-rotary Hand Pump

Capacity: 10~105L/Min
Head: 14~26m
Inlet vacuum height: 5m, 6m, 6.5m

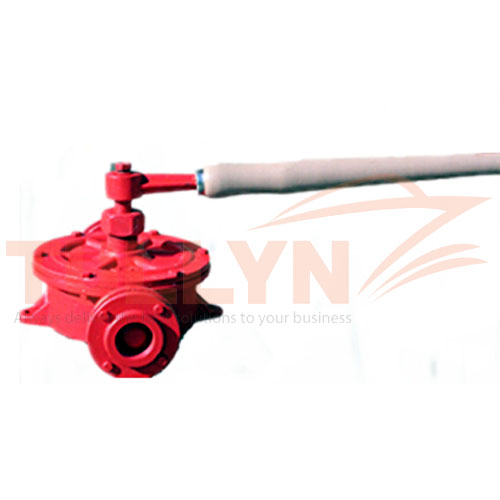

CYL Series Marine Semi-rotary Hand Pump

CYL Series Marine Semi-rotary Hand Pump Application

CYL Series Marine Semi-rotary Hand Pump is widely used for pumping water, gasoline, kerosene and on iron and copper and other non-corrosive liquid, do not apply to contain fibers or other solids in the liquid, the suction liquid temperature under 60℃.

CYL Series Marine Hand Pump has the advantages of compact structure, elegant style, convenient and reliable use. Available for shipping, mining, enterprises, schools, and other units to use vehicles.

Model Explanation

for example CYL-15
CYL — Half twist-action hand pump
15 — Inlet and outlet diameter 15mm

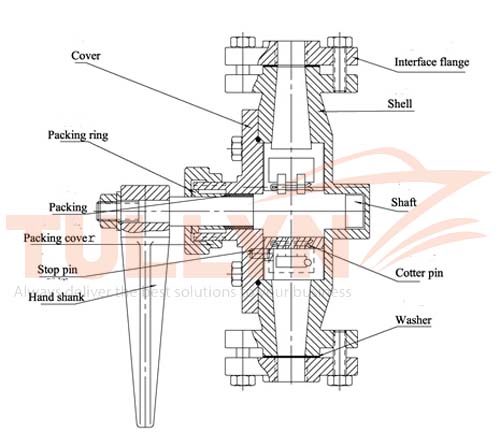

CYL Series Marine Semi-rotary Hand Pump Drawing

"CYL

CYL Series Marine Semi-rotary Hand Pump Specification

Type Capacity(L/min) Head(m) Inlet vacuum
height(m)
Weight(kg)
CYL-15 15 14 5 5
CYL-20 20 14 5 5.5
CYL-25 25 26 6 7.5
CYL-32 28 26 6 9
CYL-40 65 18 6.5 22.5
CYL-50 105 18 6.5 34.5

Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All specifications are subject to change without prior notice. All pictures shown are for illustration purposes only. Actual product may vary. Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
