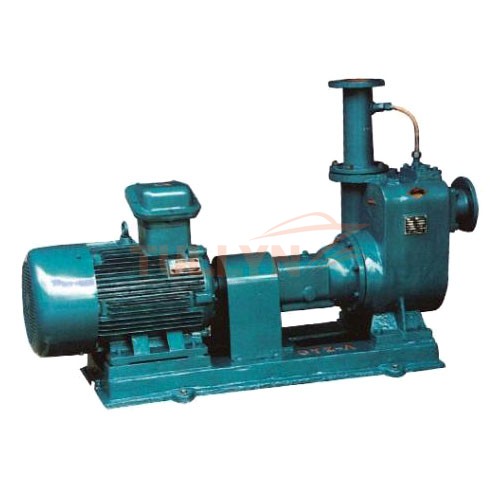

CYZ type Marine self-priming centrifugal pump
CYZ type Marine self-priming centrifugal pump Application
CYZ series horizontal marine self-priming centrifugal pump is used in boats and ships to transport petrochemicals such as petrol, coal oil and diesel oil. The temperature of the medium can be between 20degrees below zero and 80degrees.This series pump is a high-quality marine cargo oil pump, it also is suitable oil transport to the land oil tanker and oil tanker car and so on.It is able to carry seawater and freshwater less than 80degrees.When used non-corrosive mechanical seal it can be transported chemistry liquid.
CYZ type Marine self-priming centrifugal pump Specification
| 32CYZ-25 | 4.8 | 28 | 2900 | 1.1 | 5 |
| 40CYZ-20 | 6.3 | 20 | 2900 | 1.1 | 3.5 |
| 40CYZ-40 | 10 | 40 | 2900 | 4 | 3.5 |
| 50CYZ-40 | 10 | 40 | 2900 | 4 | 3.5 |
| 50CYZ-12 | 15 | 12 | 2900 | 1.5 | 3.5 |
| 50CYZ-20 | 18 | 20 | 2900 | 2.2 | 3.5 |
| 50CYZ-35 | 14 | 35 | 2900 | 4 | 3.5 |
| 50CYZ-50 | 12.5 | 50 | 2900 | 55 | 3.5 |
| 50CYZ-60 | 15 | 60 | 2900 | 7.5 | 3.5 |
| 50CYZ-75 | 20 | 75 | 2900 | 11 | 3.5 |
| 50CYZ-II-160 | 20 | 160 | 2900 | 22 | 4 |
| 80CYZ-13 | 35 | 13 | 2900 | 3 | 4 |
| 80CYZ-17 | 43 | 17 | 2900 | 4 | 4 |
| 80CYZ-25 | 50 | 25 | 2900 | 7.5 | 4 |
| 80CYZ-32 | 50 | 32 | 2900 | 7.5 | 4 |
| 80CYZ-55 | 60 | 55 | 2900 | 18.5 | 4 |
| 80CYZ-70 | 60 | 70 | 2900 | 22 | 4 |
| 80CYZ-120 | 39 | 120 | 2900 | 37 | 3.5 |
| 100CYZ-40 | 80 | 45 | 2900 | 22 | 5 |
| 100CYZ-40A | 100 | 40 | 1450 | 22 | 4 |
| 100CYZ-65 | 100 | 65 | 2900 | 30 | 4 |
| 100CYZ-75 | 70 | 75 | 2900 | 30 | 4 |
| 100CYZ-130 | 30 | 130 | 2900 | 30 | 4 |
| 150CYZ-55 | 160 | 55 | 2900 | 45 | 5 |
| 150CYZ-65 | 170 | 65 | 1450 | 55 | 5 |
| 150CYZ-80 | 150 | 80 | 2900 | 55 | 4.5 |
Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. For the actual specification, please check with us when order placed.
