Delta Flipper Anchor

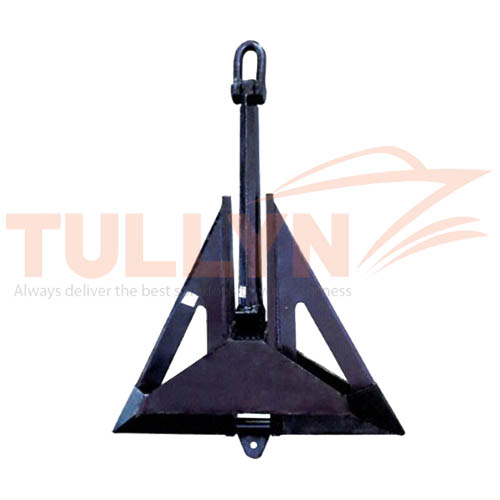

Delta Flipper Anchor Introduction
This type of Delta Flipper Anchor is known worldwide for its easy handling and rapid penetration in different soil conditions. It’s manufactured from high tensile steel and approved by all classifications.
Advantages of Delta Flipper Anchor:
Proven superior high holding power capacity.
Excellent efficiency in terms of weight and holding power.
Open construction for smooth and good penetration in different kinds of soil.
No rotation, which means no decrease of holding capacity and no dragging of the anchor.
Easy dismantling for transport purposes.
The Delta Flipper Anchor is used extensively in the global offshore industry and dredging industry and has earned a reputation as a high-quality performer.
The Delta Flipper Anchor can be supplied with certification, from all major classification societies.

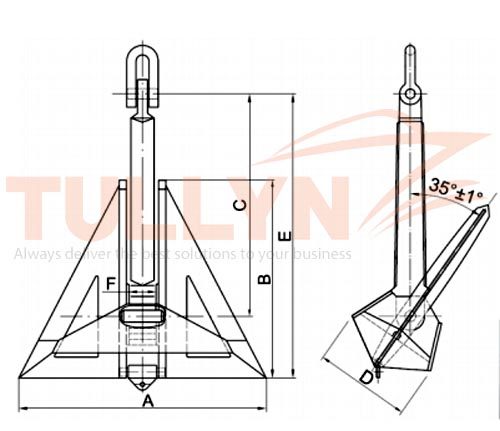

Delta Flipper Anchor Drawing
Delta Flipper Anchor Drawing
Delta Flipper Anchor Specification
| Nominal Weight | A | B | C | D | E | F |
| KG | mm | mm | mm | mm | mm | mm |
| 300 | 1,200 | 960 | 1,080 | 457 | 1,380 | 45 |
| 500 | 1,500 | 1,200 | 1,350 | 571 | 1,725 | 50 |
| 1,000 | 1,875 | 1,500 | 1,686 | 714 | 2,155 | 62 |
| 1,080 | 1,915 | 1,530 | 1,686 | 722 | 2,200 | 62 |
| 2,000 | 2,363 | 1,890 | 2,124 | 900 | 2,715 | 74 |
| 3,000 | 2,700 | 2,160 | 2,430 | 1,028 | 3,105 | 90 |
| 4,000 | 2,975 | 2,380 | 2,676 | 1,133 | 3,420 | 100 |
| 5,000 | 3,250 | 2,600 | 2,922 | 1,238 | 3,735 | 110 |
| 7,000 | 3,575 | 2,860 | 3,216 | 1,360 | 4,110 | 117 |
| 9,000 | 3,950 | 3,160 | 3,555 | 1,504 | 4,543 | 135 |
| 10,000 | 4,100 | 3,280 | 3,690 | 1,561 | 4,715 | 140 |
| 12,000 | 4,490 | 3,575 | 4,030 | 1,695 | 5,320 | 145 |
| 13,500 | 4,670 | 3,720 | 4,195 | 1,765 | 5,535 | 150 |
| 15,000 | 4,845 | 3,875 | 4,355 | 1,830 | 5,735 | 150 |
| 18,000 | 5,140 | 4,080 | 4,610 | 1,940 | 6,080 | 160 |
| 20,000 | 5,330 | 4,260 | 4,790 | 2,010 | 6,310 | 170 |
| 22,500 | 5,490 | 4,360 | 4,905 | 2,060 | 6,470 | 180 |
| 25,000 | 5,740 | 4,590 | 5,160 | 2,165 | 6,795 | 195 |
| 27,500 | 5,980 | 4,785 | 5,385 | 2,245 | 7,095 | 195 |
Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. For the actual specification, please check with us when order placed. Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
