Mushroom Anchor

Material: Carbon Iron
Weight: 50kg~5,000kg
Finish: Hot galvanized, Black bitumen paint, anti-rusting paint or customized
Class Certificate: ABS, LR, BV, DNV, GL, NK, KR, IRS, and CCS
Application: Anchor for boat

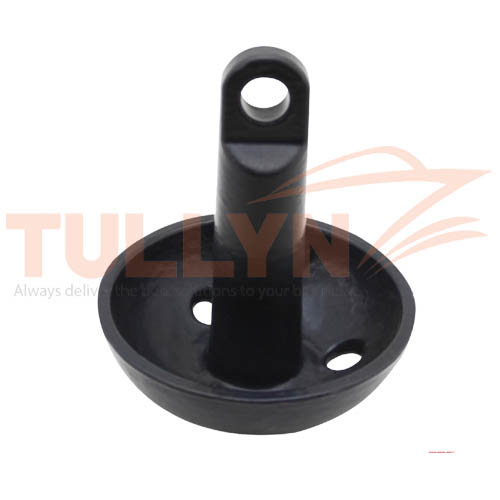

Mushroom Anchor

Mushroom Anchor Introduction

The cast iron mushroom anchor is coated with PVC or PE and has a large eye for tying off the rope or connecting to a chain. Holes in the base of the anchor makes pulling through water easier. Mushroom anchors are perfect for smaller boats that a anchoring in the mud or weedy bottoms. It is recommended in soft conditions and for light duty.

Mushroom anchors perform well for small craft, Personal Water Craft (PWC), Canoes or Kayaks, or as the second anchor on larger boats. Mushrooms are also perfect as a drag anchor for fishing in current, or for holding small buoys and markers.

The anchors are of high quality and good stability. The weight of the Anchor is 50kgs-5,000kgs.

The Mushroom Anchors can be supplied with certification from any of the major classification societies.

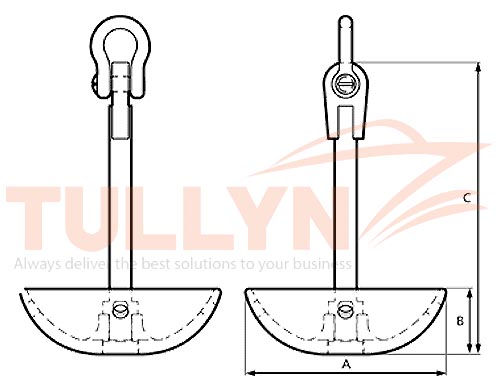

Mushroom Anchor Drawing

Mushroom Anchor Drawing

Mushroom Anchor Drawing

Mushroom Anchor Specification

Weight A B C
kg mm mm mm
50 Φ430 115 680
100 Φ550 180 802
150 Φ655 210 968
250 Φ730 245 988
350 Φ750 265 988
500 Φ750 330 988
5000 Φ2005 546 3648

Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. For the actual specification, please check with us when order placed. Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
