E308L-16 Stainless Steel Welding Electrode

Model Number AWS E308L-16
Size 2.0mm 2.5mm 3.2mm 4.0mm 5mm
Applications: Welding of the Stainless steel structure of extra-low carbon 00Cr19Ni10, and Welding of 0Cr18Ni10Ti stainless steel structure of operating temperature is lower than 300 degrees.

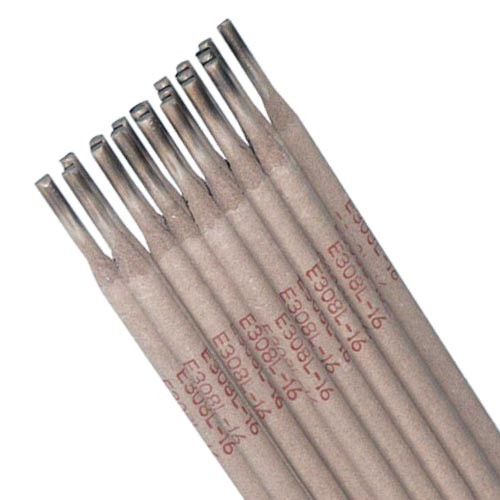

E308L-16 Stainless Steel Welding Electrode

E308L-16 Stainless Steel Welding Electrode Introduction

E308L-16 was developed for welding 304L. This electrode deposits a maximum of 0.04% carbon in the weld metal. This welding electrode is used extensively for welding of chemical plant equipment and may be used successfully for welding types 321 and 347 steel grades. This welding rod minimizes the formation of chromium carbides in the weld metal.

E308L-16 Stainless Steel Welding Electrode Application

E308L-16 welding electrode is used Used for welding ultra-low-carbon stainless steel structures such as 00Cr19Ni9, 0Cr18Ni10Ti etc. with good impact toughness under -196℃ and suitable for welding LNG tanks and pipelines.

ATTENTION:
1.The welding electrode must be preheated at the temperature of 300°C for 1 hour. Preheat the rod whenever it is used
2.Preferred DC power supply, electric current should not be high.

Packing: In cartons of 20kgs net each, consisting of 8boxes x 2. 5kgs for size 2. 5mm and 4boxes×5kgs for other sizes.

E308L-16 Stainless Steel Welding Electrode Chemical Composition(%)

Chemical Composition of Deposited Metal (%)

Chemical Composition C Mn Si S P Cu Ni Mo Cr
Guarantee Value ≤0.04 0.5~2.5 ≤0.90 ≤0.030 ≤0.040 ≤0.75 9.0~11.0 ≤0.75 18.0~21.0

Mechanical Properties of Deposited Metal

Test Item Rm(MPa) A(%)
Guarantee Value ≥520 ≥35

Reference Current (AC, DC+)

Electrode Diameter(mm) φ2.0 φ2.5 φ3.2 φ4.0 φ5.0
Welding Current (A) 40~80 50~100 70~130 100~160 140~200

Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. For the actual specification, please check with us when order placed.
