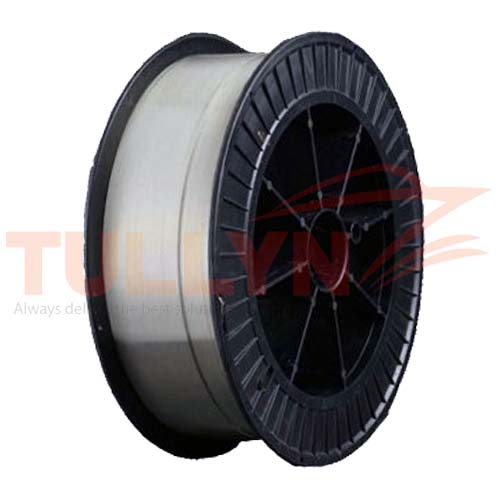

ERCuAl-A2 Aluminum Bronze Welding Wire

AWS Specification: AWS A5.7 ERCuAl-A2
BS EN Specification: BS EN14640 CuAl10
DIN 1733 Specification: SG-CuAl10Fe
Size 0.8㎜ 0.9㎜ 1.0㎜ 1.2㎜ 1.6㎜ 2.0㎜
Applications: AWS A5.7 ERCuAl-A2 is widely used for overlays on shafts, propellers, housings, couplings, bushings, valve seats, pumps, etc.

ERCuAl-A2 Aluminum Bronze Welding Wire

ERCuAl-A2 Aluminum Bronze Welding Wire Application

ERCuAl-A2 Aluminum Bronze Welding Wire is a very versatile alloy available in coated electrodes or bare wire.It is used for joining aluminum bronze of similar composition, silicon and manganese bronze, high strength copper-zinc alloys, some copper-nickel alloys, ferrous metals and dissimilar metals.

Dissimilar applications include aluminum bronze to steel and copper to steel. It is also used for building up or overlaying metal for wear and corrosion resistant surfaces. ERCuAl-A2 Aluminum Bronze Welding Wire is most commonly used for marine maintenance and repair welding of ship propellers, pump housings, rigging jacks, piston heads, bearings and many overlay or surfacing applications.

Aluminum Bronze A-2 (ERCuAl-A2) filler metal is an intermediate-strength aluminum bronze alloy used for welding aluminum bronze plate fabrications and for joining dissimilar metals such as cast iron, carbon steels, copper,bronze and copper-nickel materials. It is excellent for building up or overlaying metal for wear and corrosion resistant surfaces.

Weld deposits exhibit high mechanical properties, tensile strength, yield strength and hardness.

Particularly suitable for the hard-facing of Aluminum Bronze with steel. It has increased resistance to wear and abrasion, as well as superior corrosion resistance to seawater. Widely used for ship constructions, apparatus and plumbing. For multi-layer hard facing on steel, pulsed Argon arc welding is recommended.

ERCuAl-A2 Aluminum Bronze Welding Wire Typical applications

• Marine maintenance and repair
• Wear surface reconstruction
• Casting repair
• Joining aluminum bronze of similar

ERCuAl-A2 Aluminum Bronze Welding Wire Physical and Mechanical Properties

Solids-Temperature 1030℃
Density 7.6kg/dm³
Elongation 35%
Liquids-Temperature 1040℃-1090℃
Tensile Strength 390-500N/mm²
Brinell Hardness 140HB

ERCuAl-A2 Aluminum Bronze Welding Wire CHEMICAL COMPOSITE(%)

Standard ISO24373 GB/T9460 BS EN14640 AWS A5.7 DIN 1733
Class Cu6180 SCu6180 Cu6180 C61800 2.0937
Alloy CuAl10Fe CuAl10Fe CuAl10 ERCuAl-A2 SG-CuAl10Fe
Cu bal. bal. bal. bal. bal.
Al 8.5-11.0 8.5-11.0 8.5-11.0 8.5-11.0 9.0-11.0
Fe 1.5 max 1.5 0.5-1.5 0.5-1.5 0.5-
Mn 1 max 1.0
Ni 1 max 1.0
P
Pb 0.02 max 0.02 0.02 0.02 max 0.02
Si 0.1 max 0.1 0.1 0.1 max 0.1
Sn
Zn 0.02 max 0.2 0.02 0.02 max 0.02
other 0.5 max 0.5 0.4 0.5 max 0.4

Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. For the actual specification, please check with us when order placed.
