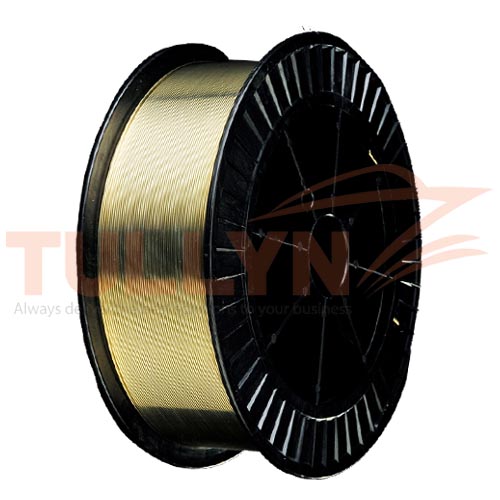

ERCuNi Copper-Nickel Alloy Welding Wire

BS EN Specification: BS EN14640 CuNi10
ISO24373 Specification: CuNi10
DIN 1733 Specification: SG-CuNi10Fe
Size 0.8㎜ 0.9㎜ 1.0㎜ 1.2㎜ 1.6㎜ 2.0㎜
Applications: AWS A5.7 ERCuNi is used in Desalination plant, Evaporators and etc in salt and seawater processing system,etc

ERCuNi Copper-Nickel Alloy Welding Wire

ERCuNi Copper-Nickel Alloy Welding Wire Application

ERCuNi Copper-Nickel Alloy Welding Wire is especially good for seawater corrosion resistance. It is particularly suitable for the welding and hard facing of copper-nickel such as machinery, desalting of seawater, ship-building, oil refinery, and food processing industries. This copper-nickel alloy wire is also suitable for welding of nonferrous alloys, dissimilar steel materials.

This alloy can be used for dissimilar welding applications welding various copper-nickel alloys to nickel alloys and various other copper-nickel alloys. ERCuNi is occasionally used for overlay on carbon steel, but can only be used after applying a layer of ERNi-1 first.

ERCuNi Copper-Nickel Alloy Welding Wire Features

Higher resistance than copper
High tensile strength
Good bending proof performance

ERCuNi Copper-Nickel Alloy Welding Wire Physical and mechanical data

Solids-Temperature 1180℃
Density 8.9㎏/dm3
Elongation 36%
Liquids-Temperature 1240℃
Tensile Strength 420N/mm2
Brinell Hardness 115HB

ERCuNi Copper-Nickel Welding Wire CHEMICAL COMPOSITION(%)

Standard ISO24373 GB/T9460 BS EN14640 AWS A5.7 DIN 1733
Class Cu7158 SCu7158 Cu7158 C71581 2.0837
Alloy CuNi30Mn1FeTi CuNi30Mn1FeTi CuNi30 ERCuNi SG-CuNi30Fe
Cu bal. bal. bal. bal. bal.
Fe 0.4-0.7 0.4-0.7 0.4-1.0 0.40-0.75 0.4-1.0
Mn 0.5-1.5 0.5-1.5 0.5-1.5 1 0.5-1.5
Ni 29.0-32.0 29.0-32.0 29.0-32.0 29.0-32.0 29.0-32.0
P 0.02 max0.02 0.02 0.02 max0.02
Pb 0.02 max0.02 0.02 0.02 max0.02
Si 0.25 max0.25 0.25 0.25 max0.2
C 0.04 0.05 max0.05
Ti 0.2-0.5 0.2-0.5 0.2-0.5 0.20-0.50 0.2-0.5
S 0.01 max0.01 0.02 max0.015
Other 0.5 max0.5 0.4 0.5 max0.4

Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. For the actual specification, please check with us when you place the order.
