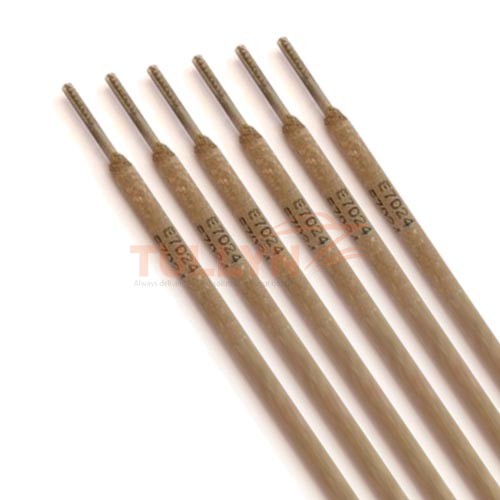

E7024 Mild Carbon Steel Welding Electrode

Type: E (Carbon Steel Electrodes/ Low Alloy Steel Electrodes)
Material: Mild Steel
Diameter: 2.0mm-5.0mm
Length: 300-400mm
Welding Core Type: Carbon Structural Steel

Description

E7024 Mild Carbon Steel Welding Electrode

E7024 Mild Carbon Steel Welding Electrode Introduction

E7024 mild carbon steel welding rod is high-efficiency titanium iron powder type electrodes, the melting rate of weld metal is around 150%. It has excellent welding technological performances.

The arc is stable and is easy to re-strike with little spatter. It is easy to manipulate and slag is easy to remove so that the welding productivity is high. It is suitable for flat or fillet position welding and can be used on AC and DC.

E7024 Mild Carbon Steel Welding Electrode Applications

E7024 is suitable for welding structures of vehicles, boilers, ships, and welding on the flat or fillet position, Heavy sections machinery components, Heavy Structural’s works like cranes and bridges, Assembly of earthmoving equipment, Welding heavy columns, locomotive, Heavy machinery parts, in shipbuilding, pressure vessels etc.

E7024 Mild Carbon Steel Welding Electrode Chemical Composition(%)

C Mn Si S P
AWS Standard ≤0. 15 ≤1. 25 ≤0. 90 ≤0. 035 ≤0. 035
Typical 0. 096 0. 8 0. 46 0. 030 0. 030

Mechanical Properties of Weld Metal

Yield Strength
(Mpa)
Tensile Strength
(Mpa)
Elongation(%) Charpy V Impact
Value (-30°C)
Bend Test
(Degree)
AWS

Standard

≥400 ≥490 ≥17 N. S. N. S.
Typical 410 490 27 67J 180

Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.

Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. For the actual specification, please check with us when order placed.
