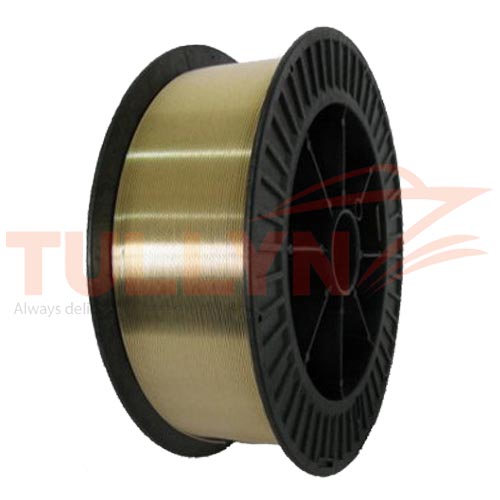

ERCuNiAl Ni-Aluminum Bronze Welding Wire

AWS Specification: AWS A5.7 ERCuNiAl
BS EN Specification: BS EN14640 CuAl9Ni5
ISO24373 Specification: CuAl9Ni5Fe3Mn2
DIN 1733 Specification: SG-CuAl8Ni6
Size 0.8㎜ 0.9㎜ 1.0㎜ 1.2㎜ 1.6㎜ 2.0㎜
Applications: AWS A5.7 ERCuAl-A2 Particularly suitable for welding casting and forging products of Nickel-Aluminum Bronze such as propellers, bearing weights, valves, pumps and pipe systems.

ERCuNiAl Nickel-Aluminum Bronze Welding Wire

ERCuNiAl Nickel-Aluminum Bronze Welding Wire APPLICATION

ERCuNiAl Wire electrode used for copper aluminum alloys with Ni and Fe addition. Weld cladding on cast iron materials and steel. Mixed joints of aluminum bronze steel.

It also is excellent for the join welding of brass tube and copper-aluminum that requires resistance to erosion.

ERCuNiAl is a nickel-aluminum-bronze alloy used to weld cast and wrought nickel-aluminum bronze.

It has excellent resistance to corrosion, erosion, and cavitations in salt or brackish water.

ERCuNiAl applications include ship fittings, ship propellers, power plant valves, piping systems, intake screens, oil recovery pumps, and propeller gear housings

ERCuNiAl Nickel-Aluminum Bronze Welding Wire Physical and mechanical data

Solids-Temperature 1015℃
Density 7.5kg/dm³
Elongation 20%
Liquids-Temperature 1045℃
Tensile Strength 500N/mm²
Brinell Hardness 150HB

ERCuNiAl Nickel-Aluminum Bronze Welding Wire PACKING

Make-up Weight/Length Dimension
Drum / Box 175 – 200 kg 0,80 – 1,60 mm
SD300 / BS300 / K300 12 – 15 kg 0,80 – 2,40 mm
H500 / H560 / H760 150 – 250 kg 0,80 – 2,40 mm
Coils 25 – 100 kg 1,60 – 6,00 mm
Rods 250 – 3000 mm 1,60 – 6,00 mm

ERCuNiAl Nickel-Aluminum-Bronze Welding Wire CHEMICAL COMPOSITION(%)

Standard ISO24373 GB/T9460 BS EN14640 AWS A5.7 DIN 1733
Class Cu6328 SCu6328 Cu6328 C63280 2.0923
Alloy CuAl9Ni5Fe3Mn2 CuAl9Ni5Fe3Mn2 CuAl9Ni5 ERCuNiAl SG-CuAl8Ni6
Cu balance balance balance balance balance
Al 8.5-9.5 8.5-9.5 8.5-9.5 8.50-9.50 8.5-9.5
Fe 3.0-5 3.0-5 3.0-5 3.0-5 3.0-4
Mn 0.6-3.5 0.6-3.5 0.6-3.5 0.60-3.50 1.0-2.0
Ni 4.0-5.5 4.0-5.5 4.0-6 4.0-5.5 4.0-6
P
Pb 0.02 max 0.02 0.02 0.02 max 0.02
Si 0.1 max 0.1 0.2 0.1 max 0.2
Sn
Zn 0.1 max 0.1 0.1 0.1 max 0.1
Other 0.5 max 0.5 0.4 0.5 max 0.4

Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. For the actual specification, please check with us when you place the order.
