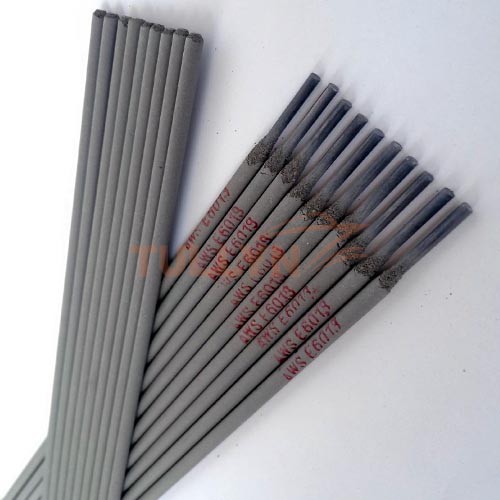

E6019 Mild Carbon Steel Welding Electrode

Type: E (Carbon Steel Electrodes/ Low Alloy Steel Electrodes)
Material: Mild Steel
Diameter: 2.0mm-5.0mm
Length: 300-400mm
Welding Core Type: Carbon Structural Steel
Welding Current: 60-240℃
Operating Temperature: 150℃
Application: GENERAL PURPOSE

Description

E6019 Mild Carbon Steel Welding Electrode

E6019 Mild Carbon Steel Welding Electrode Introduction

E6019 mild carbon steel welding rod is of ilmenite type electrodes for mild steel. It welds in all positions and travels freely. Mechanical properties of the deposited metal are good. Its excellent quality has won the approval of shipbuilding industry.

E6019 welding rod is the electrode under the group of ilmenite sheath, so the welded joints don’t reveal blow holes or slag bearing. Slags are easily blistered. The well-fined welded joints are ductile, have endurance bending strength and high deposition coefficient. Possibly welding at all positions.

E6019 Mild Carbon Steel Welding Electrode Applications

Suitable for welding medium and low-carbon steel thick armor plate structure under 430 ~ 490 Mpa load with high ductility and bending strength such as rolled-steel structures, ship’s shell, basin, ships, bridges, machinery structures and etc.

E6019 Mild Carbon Steel Welding Electrode Chemical Composition(%)

C Mn Si S P
AWS Standard ≤0. 20 ≤1. 20 ≤1. 00 N. S. N. S.
Typical 0. 08 0. 51 0. 25 0. 019 0. 029

Mechanical Properties of Weld Metal

Yield Strength
(Mpa)
Tensile Strength
(Mpa)
Elongation(%) Charpy V Impact
Value (-20°C)
Bend Test
(Degree)
AWS Standard ≥330 ≥430 ≥22 ≥27 NIL.
Typical 370 480 29 70J 180

Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.

Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. For the actual specification, please check with us when order placed.
