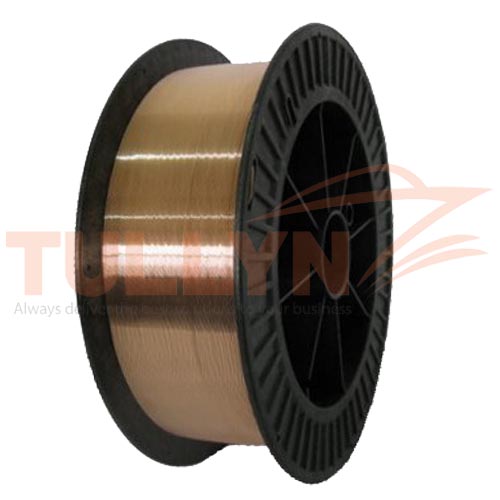

ERCuSn-C Phosphor Bronze Welding Wire

AWS Specification: AWS A5.7 ERCuSn-C
BS EN Specification: BS EN14640 CuSn9P
ISO24373 Specification: CuSn8P
Size 0.8㎜ 0.9㎜ 1.0㎜ 1.2㎜ 1.6㎜ 2.0㎜
Applications: AWS A5.7 ERCuSn-C is recommended for high strength welds on phosphor bronze materials. It is used as an overlay on cast iron or steel, to join dissimilar metals.

ERCuSn-C Phosphor Bronze Welding Wire

ERCuSn-C Phosphor Bronze Welding Wire APPLICATION

ERCuSn-C Phosphor Bronze Welding Wire is recommended for high strength welds of phosphor bronze materials. Weld deposits have high tensile and yield strengths and greater hardness due to the 7 to 9 percent Tin content. It is used as an overlay on cast iron or steel, to join dissimilar metals, for maintenance repair and fabrication of valve bodies, seats, bearings, bushings, gears, propellers, impeller blades and housings. Preheat is recommended. Recommended shielding gas is Argon, or 75Helium/25Argon.

ERCuSn-C is recommended for joining welding of with Cu-Sn alloy. Best for the joining welding of Cu-Zn alloy with steel. Pre-heat suggested for large size products, and pulsed arc welding is recommended for multi-layer on steel.

ERCuSn-C  Phosphor Bronze Welding Wire Physical & Mechanical Properties:

Solids-Temperature 875
Density 8.8kg/dm³
Elongation 20%
Liquids-Temperature 1025℃
Tensile Strength 260N/mm²
Brinell Hardness 80HB

ERCuSn-C Phosphor Bronze Welding Wire CHEMICAL COMPOSITE(%)

Standard ISO24373 GB/T9460 BS EN14640 AWS A5.7
Class Cu5210 SCu5210 Cu5210 C52100
Alloy CuSn8P CuSn8P CuSn9P ERCuSn-C
Cu bal. bal. bal. bal.
Al 0.01
Fe 0.1 max 0.1 0.1 0.1
Mn
Ni 0.2 max 0.2
P 0.01-0.4 0.01-0.4 0.01-0.4 0.10-0.35
Pb 0.02 max 0.02 0.02 0.02
Si
Sn 7.5-8.5 7.5-8.5 7.0-9.0 7.0-9.0
Zn 0.2 max 0.2 0.2 0.2
Other 0.2 max 0.2 0.5 0.5

Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. For the actual specification, please check with us when order placed.
