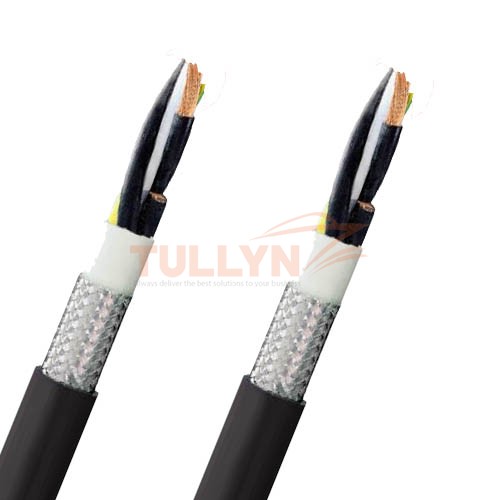

GGDURP Flexible Energy Chain Shielded Cable
GGDURP Flexible Energy Chain Shielded Cable Application
The GGDURP Flexible Energy Chain Shielded Cable is intended for systems engineering and mechanical engineering, crane, and conveyor equipment, power, and supply cable with extremely heavy loads.
GGDURP High Flexible Energy Chain Shielded Cable is Highly flexible, screened control cable with TPE core insulation and abrasion and oil resistant PUR sheath.This cable has a good combination of quality and compact design, Thin and light. Its Increased durability under harsh conditions thanks to robust PUR outer sheath. This shielded power cable is resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media. Its copper braiding screens the cable against electromagnetic interference.
GGDURP Flex Energy Chain Shielded Cable Construction
| Power Conductor | High Flexible, Finely stranded bare copper wire according.to IEC60228/VDE0298 Class6 |
| Insulation | TPE Compound |
| Inner Covering | TPU Compound |
| Reinforced Element | Nylon wire/Kevlar Wire Braided |
| Shield | High flexural strength copper shield, coverage approx. 90% optical. |
| Outer Sheath | PUR Compound |
Code Design
| Cable for Port machinery | G |
| Reinforced | G |
| For Motor systems | D |
| PUR Sheath | U |
| Flexible Conductors | R |
| Metal braided shield | P |
GGDURP Flexible Electrical Energy Chain Shielded Cable Technical Data
| Rated Voltage | 600/1000V |
| Min.Ambient temperature | -35℃ |
| Conductor Long time working temperature | 100℃ |
| Min.Bending radius | 6OD |
GGDURP Flexible Energy Chain Shielded Cable Specification
| Cross section(mm2) | Conductor construction ( tinned copper) | Nom. OD of Cable(mm) | Max. OD of Cable(mm) | Approx weight(kg/km) |
| 1×4 | 1×126/0.20 | 7.9 | 8.7 | 114 |
| 1×6 | 1×189/0.20 | 8.8 | 9.6 | 146 |
| 1×10 | 1×322/0.20 | 10.1 | 11.1 | 205 |
| 1×16 | 1×513/0.20 | 11.5 | 12.7 | 280 |
| 1×25 | 1×798/0.20 | 13.3 | 14.6 | 399 |
| 1×35 | 1×1121/0.20 | 14.7 | 16.2 | 514 |
| 1×50 | 1×703/0.30 | 16.9 | 18.6 | 693 |
| 1×70 | 1×999/0.30 | 19.6 | 21.2 | 948 |
| 1×95 | 1×1332/0.30 | 21.4 | 23.1 | 1198 |
| 1×120 | 1×1702/0.30 | 23.2 | 25.1 | 1505 |
| 1×150 | 1×2109/0.30 | 25.6 | 27.6 | 1835 |
| 1×185 | 1×1443/0.40 | 28.2 | 30.5 | 2206 |
DISCLAIMER: Please note that the above specifications are “general specifications” that pertain to the majority of our production. Specifications and technical details should only be used for general, informational purposes. For the actual specification, please check with us when order placed.
