HKG Series High Temperature Chemical Bitumen Pump

Capacity: 3.4~460 m3/h
Head: 3.6~132 m
Medium temperature: IHK:-45 ~ 180C
HKG: -60~ 250C
THC: Less than 350C
Operation pressure: ≤1.6MPa

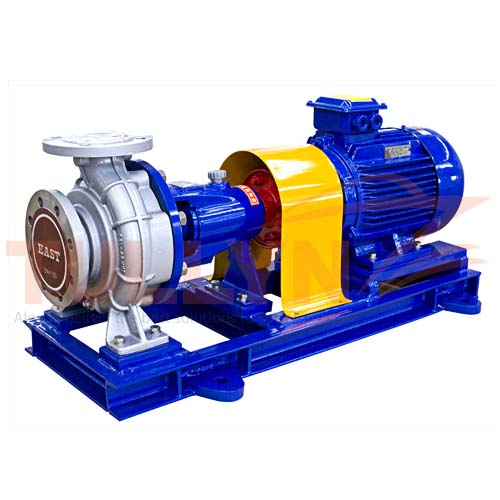

HKG Series High-Temperature Chemical Bitumen Pump

HKG Series High-Temperature Chemical Bitumen Pump Application

HKG Series High-Temperature Chemical Bitumen Pump (starch pump, high-temperature slurry pump) is single stage single suction cantilever centrifugal pump series. This chemical bitumen pump is developed on the basis of the IH pump upgrading innovation into standard Centrifugal Pump, design according to the international standard ISO2858 and manufactured according to international standard ISO5199/DIS, is derived product of IH chemical centrifugal pump, spare parts size has achieved standardized efficient product, gaining a good reputation by customers.

The HKG chemical bitumen pump is mainly used in oil, chemical industry, synthetic fiber, fertilizer, power plant, metallurgy, food and pharmaceutics, etc.industrial departments to transport clean or containing particles liquid, low or high-temperature liquid, neutral or corrosive liquid, the medium average temperature is -45℃~200℃. High-temperature type, slurry type medium temperature -60℃~+360℃ conveying high temperature and normal temperature particles corrosive liquid, also can transport corrosive liquid similar to water. This chemical bitumen pump is widely used in chemical, petroleum, metallurgy, pharmacy, food, wine, power, environmental protection and hostile environment.

This bitumen pump characteristic is particularly prominent, 6 sets sealing structure, 3 types of bearing cooling method, 2 kinds impeller forms, with strong reliability, good interchangeability.

HKG Series High-Temperature Chemical Bitumen Pump Drawing

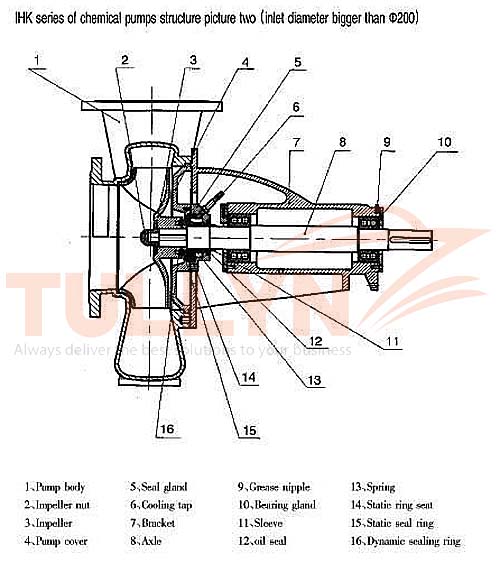

IHK Series High-Temperature Slurry Feed Chemical Pump Drawing

IHK Series High-Temperature Slurry Feed Chemical Pump Drawing

HKG Series High-Temperature Chemical Bitumen Pump Specification

Type Inlet Outlet Capacity Head Motor
Speed
Motor
Power
Impeller
Diameter
mm mm (m3/h) (m) r/min kw mm
IHK50-32-125 50 32 12.5 20 2900 2.2 125
IHK50-32-125 50 32 6.3 5 1450 0.55 125
IHK50-32-160 50 32 12.5 32 2900 3 160
IHK50-32-160 50 32 6.3 8 1450 0.55 160
IHK50-32-200 50 32 12.5 50 2900 5.5 200
IHK50-32-200 50 32 6.3 12.5 1450 0.75 200
IHK50-32-250 50 32 12.5 80 2900 11 250
IHK50-32-250 50 32 6.3 20 1450 1.5 250
IHK65-50-125 65 50 25 20 2900 3 125
IHK65-50-125 65 50 12.5 5 1450 0.55 125
IHK65-50-160 65 50 25 32 2900 5.5 160
IHK65-50-160 65 50 12.5 8 1450 0.75 160
IHK65-40-200 65 40 25 50 2900 11 200
IHK65-40-200 65 40 12.5 12.5 1450 1.1 200
IHK65-40-250 65 40 25 80 2900 15 250
IHK65-40-250 65 40 12.5 20 1450 2.2 250
IHK65-40-315 65 40 25 125 2900 30 315
IHK65-40-315 65 40 12.5 32 1450 4 315
IHK80-65-125 80 65 50 20 2900 5.5 125
IHK80-65-125 80 65 25 5 1450 0.75 125
IHK80-65-160 80 65 50 32 2900 7.5 160
IHK80-65-160 80 65 25 8 1450 1.1 160
IHK80-50-200 80 50 50 50 2900 15 200
IHK80-50-200 80 50 25 12.5 1450 2.2 200
IHK80-50-250 80 50 50 80 2900 30 250
IHK80-50-250 80 50 25 20 1450 4 250
IHK80-50-315 80 50 50 125 2900 45 315
IHK80-50-315 80 50 25 32 1450 5.5 315
IHK100-80-125 100 80 100 20 2900 11 125
IHK100-80-125 100 80 50 5 1450 1.5 125
IHK100-80-160 100 80 100 32 2900 15 160
IHK100-80-160 100 80 50 8 1450 2.2 160
IHK100-65-200 100 65 100 50 2900 30 200
IHK100-65-200 100 65 50 12.5 1450 4 200
IHK100-65-250 100 65 100 80 2900 45 250
IHK100-65-250 100 65 50 20 1450 5.5 250
IHK100-65-315 100 65 100 125 2900 75 315
IHK100-65-315 100 65 50 32 1450 11 315
IHK125-100-200 125 100 200 50 2900 45 200
IHK125-100-200 125 100 100 12.5 1450 7.5 200
IHK125-100-250 125 100 200 80 2900 75 250
IHK125-100-250 125 100 100 20 1450 11 250
IHK125-100-315 125 100 200 125 2900 110 315
IHK125-100-315 125 100 100 32 1450 18.5 315
IHK125-100-400 125 100 100 50 1450 30 400
IHK150-125-250 150 125 200 20 1450 18.5 250
IHK150-125-315 150 125 200 32 1450 30 315
IHK150-125-400 150 125 200 50 1450 55 400
IHK200-150-250 200 150 400 20 1450 37 250
IHK200-150-315 200 150 400 32 1450 55 315
IHK200-150-400 200 150 400 50 1450 90 400
IHK250-200-315 250 200 550 32 1450 75 315
IHK250-200-450 250 200 600 60 1450 160 450

Please note that the above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All specifications are subject to change without prior notice. All pictures shown are for illustration purposes only. Actual product may vary. Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
