ICB Series Marine Pipe Pressing Centrifugal Pump

APPLICATION:
The ICB type Pressing Centrifugal pump can be widely used in oils, foodstuffs, beverages, medicines and health, electric power, textile, printing and dyeing, water treatment, environmental protection, building water supply, etc.

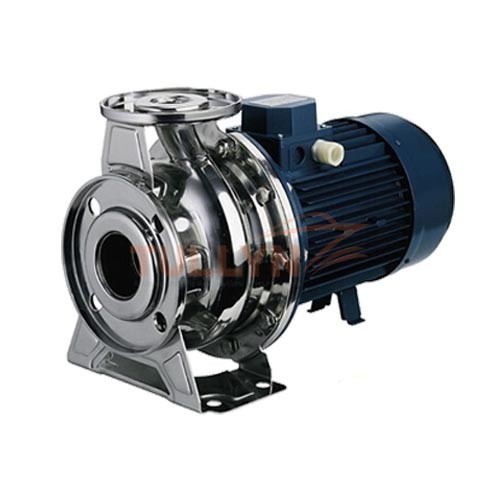

ICB Series Marine Pipe Pressing Centrifugal Pump

ICB Series Marine Pipe Pressing Centrifugal Pump Application

This ICB series of Pressing Centrifugal pump is made of stainless steel. The pump shaft and motor shaft for the same root, the so-called altogether shaft type. The pump is simply structured, lightweight, low power consumption, simple to maintain.

The nominal performance and size conform to the GB5662-85 standard, equivalent to the ISO2858-77. The inlet and outlet flange meet the GB919-88 standard, the technical conditions conform to the GB5657-85 standard.

The Pressing Centrifugal pump can be widely used in oils, foodstuffs, beverages, medicines and health, electric power, textile, printing and dyeing, water treatment, environmental protection, building water supply, boiler feed, and other industries, to deliver liquid medium with a temperature of not more than 180 degrees.

ICB Series Marine Pipe Pressing Centrifugal Pump Model Explanation

for example ICB(L)/ICBD65-50-160/4.0-4
ICB — Type ICB close-coupled complete pump
ICBL — Total shaft type import and export live joints connected the machine
ICBD — Type ICBD stub-shaft centrifugal complete pump
65 — Inlet diameter of 65 mm
50 — Outlet diameter of 50 mm
160 — Impeller nominal diameter of 160 mm
4.0 — Motor power 4.0kW
4 — 4 Pole; No Mark:2:2 Pole

ICB Series Marine Pipe Pressing Centrifugal Pump Specification

Type Impeller
type
Capacity Head Speed Efficiency Motor
Power (kw)
NPSHr
(m3/h) (m) (r/min) (%) ICB ICB(D) (m)
ICB20-12-125 0 1.6 20 2900 47 0.37 3.5
ICB20-12-160 0 1.6 30 2900 41 0.75 3.8
ICB20-12-160 A 1.2 24 2900 40 0.55 3.5
ICB32-25-125 0 3.2 20 2900 45 0.75 3.8
ICB32-25-160 0 3.2 30 2900 40 1.1 2
ICB32-25-160 A 2.5 24 2900 39 0.75 2
ICB50-25-125 0 6.3 20 2900 61 1.5 1.5 2
ICB50-25-125 A 5 15 2900 60 1.1 1.1 2
ICB50-25-160 0 6.3 32 2900 57 2.2 3 2
ICB50-25-160 A 5 25 2900 56 1.5 2.2 2
ICB50-25-200 0 6.3 50 2900 49 4 5.5 2
ICB50-25-200 A 5 40 2900 48 3 4 2
ICB50-32-125 0 12.5 20 2900 63 1.5 2.2 2
ICB50-32-125 A 10 15 2900 62 1.1 1.5 2
ICB50-32-125 0 12.5 32 2900 58 2.2 3 2
ICB50-32-125 A 10 25 2900 57 1.5 2.2 2
ICB50-32-200 0 12.5 50 2900 50 4 5.5 2
ICB50-32-200 A 10 40 2900 49 3 4 2
ICB65-50-125 0 25 20 2900 72 2.2 3 2
ICB65-50-125 A 20 15 2900 71 1.5 2.2 2
ICB65-50-160 0 25 32 2900 70 4 5.5 2
ICB65-50-160 A 20 25 2900 69 3 40 2
ICB65-40-200 0 25 50 2900 64 7.5 7.5 2
ICB65-40-200 A 20 40 2900 63 5.5 7.5 2

Please note:
For more specifications, please contact our sales.
The above specifications are “general specifications” that pertain to the majority of our production. These specifications should only be used for general, informational purposes. For the actual specification, please check with us when order placed. Classification certification like CCS, DNV, BV, LR, NK, KR, RS shall be provided upon request.
